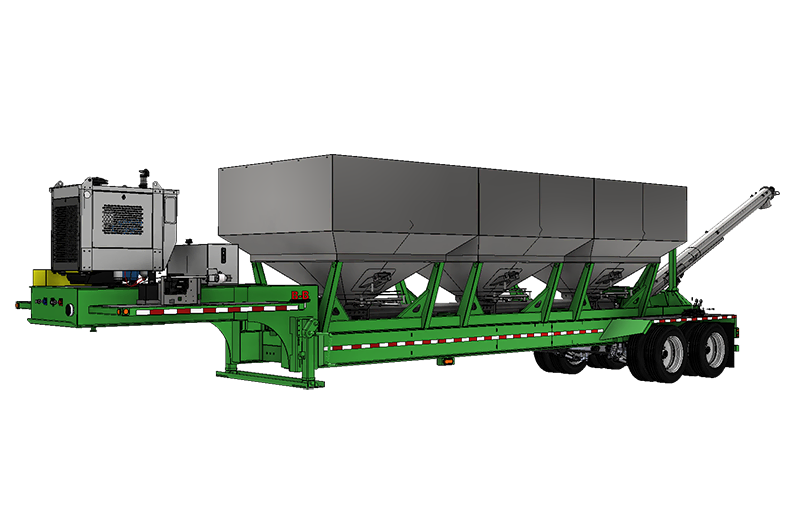

Rear Unload Trailer Tender
24-ft Trailer Tender Rear Unload Features
Standard
Tender & Auger Assembly
- (3) 258 cu. ft. compartments built with 304 stainless steel
- Hoppers have 40 degree side slope
- 10″ 304 stainless steel auger tube, and augers with Stainless Steel flighting
- Heavy duty mild steel square tubing main frame, with mild steel “boxed” support arm and cross braces
- Stainless steel manually operated slide gates
- Stainless Steel Rear Ladder
- 20′ hydraulically raised and lowered discharge auger, 15.3 foot discharge height
- Roll tarp with stainless steel end caps
Trailer Assembly
- 38ft B&B Tandem Axle Trailer
- 102″ width with 10’ top deck, D.O.T. specification trailer
- 16″ 34# dual certified wide flange beam main frame
- 22.5 (10) hole Hubpilot
- 255/70R22.5 16-ply radial tires
- D.O.T. approved lights
- Mild steel trailer fenders, with Doyle mud flaps
Power System
- Kubota 4 cylinder, water cooled diesel engine
- 30 gallon aluminum diesel tank
- 45 gallon hydraulic tank with temperature gauge, site glass, and large hydraulic filter
- Tandem hydraulic pump
Options
- Electric Drive for SRT Tarp
- Electric Vibrators, includes Push Button Prewired Control Box
- All #304 Stainless Steel Tender Frame in lieu of M.S.12”
- Urea Extension for all Hoppers
- Divider for Individual Hopper
- 2 Line Wet Kit Operation In lieu of Self-Contained Unit
- Tender Safety Alarm System
