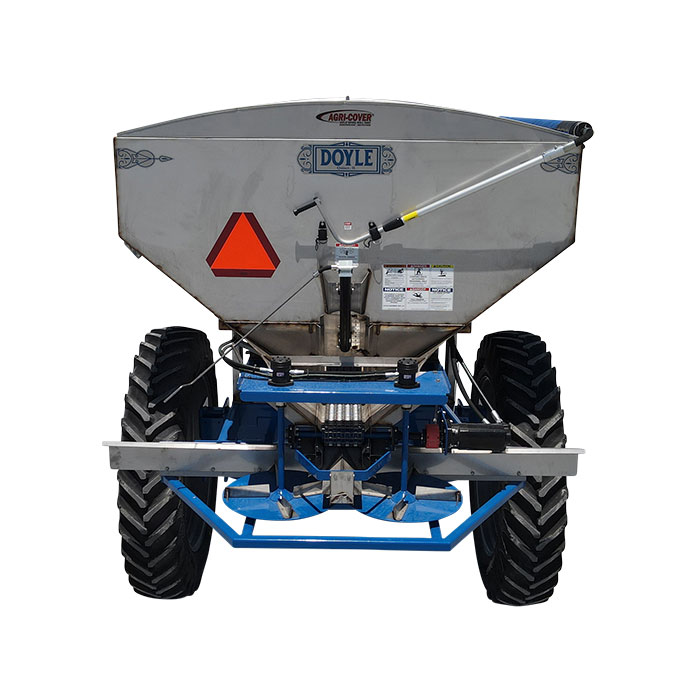

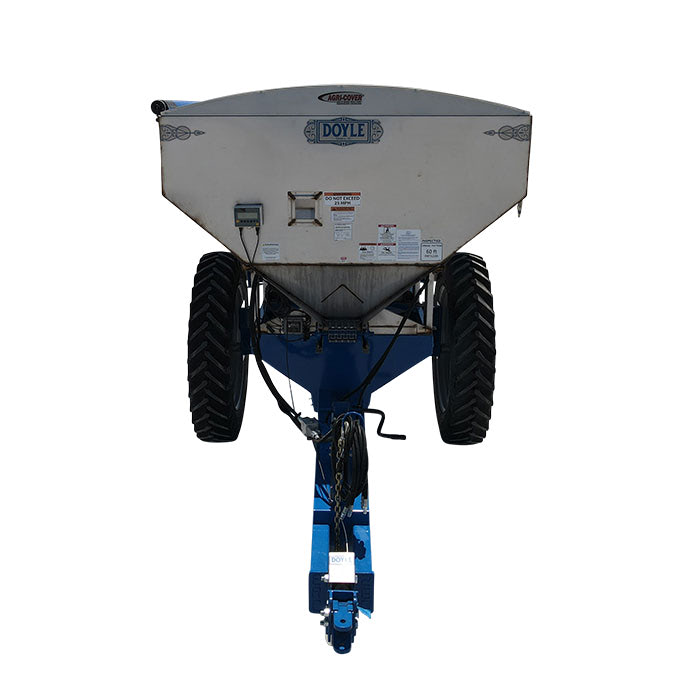

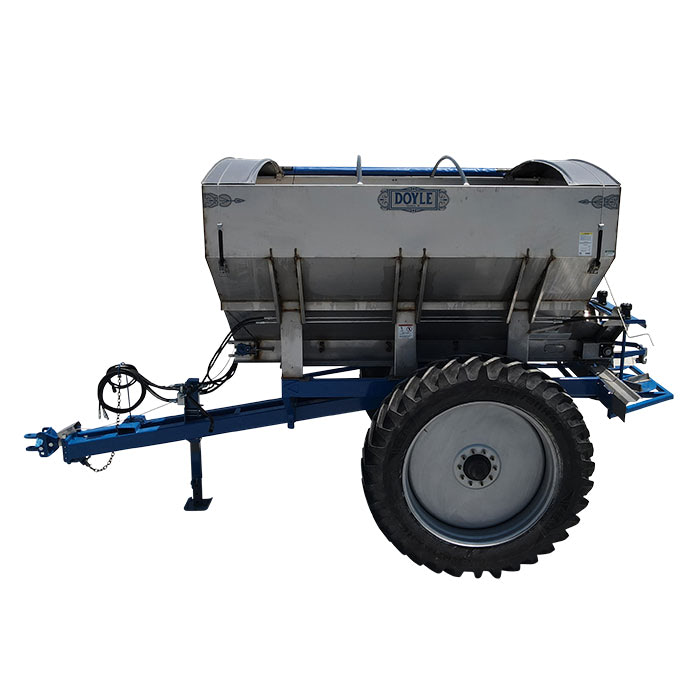

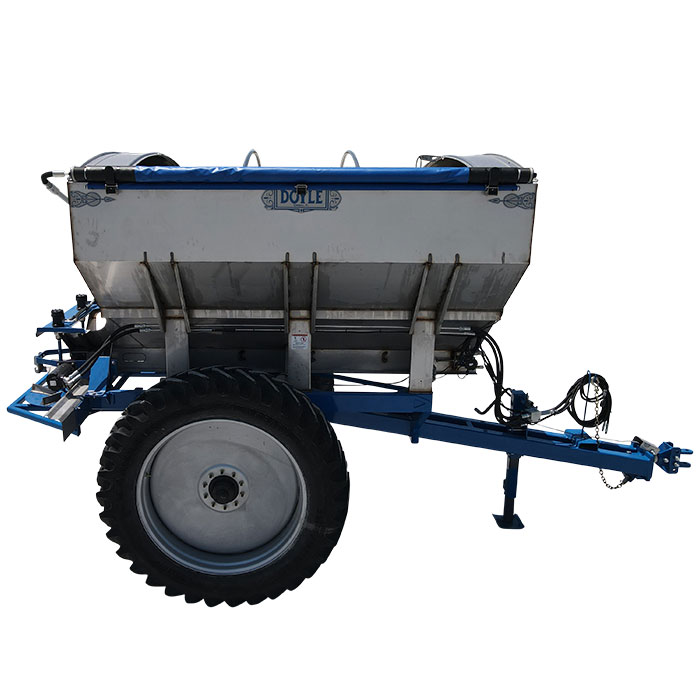

Row Crop 8, 10-Ton
Features
Drive Options
- PTO
- PTT (Plug-To-Tractor)
Standard
- Heavy Duty #304 Stainless Steel Hopper Construction
- Includes Front Window in Hopper
- Bolt on Box to Frame Allows for Easy Hopper Removal from Frame
- All Tubing Frame Construction Capped Ends
- 10-Bolt Greaseable Hubs
- Adjustable Axle From 88” to 120” Centers
- (2) 380/90R-46 Tires
- 8” Wide, 1”X 1” Mesh Type Heavy Duty #304 Stainless Steel Conveyor Chain
- Conveyor Is Driven by Press Wheel, Engaged and Disengaged with Hydraulic Cylinder Connected to Tractor
- Utilized Two Sets of Sprockets for Conveyor Rates
- Includes Adjustable #304 Stainless Steel Material Divider for Proper Material Placement on Spinners to Insure Uniform Spread Pattern at All Application Rates
- Hydraulically Driven Twin “Dished Type” Spinners
- (2) 24” Diameter Spinner With 4 Blades Per Spinner
- 60 Ft. Spread Width
Spreader Options
-
SRT Roll Tarp with Stainless Steel End Caps
-
Hillside Divider
-
Led Light Kit
-
540/1000 RPM Pump
-
Full Hydraulic Drive System
-
Scale System for Spreader, (only works with Hydraulic Drive Setup)
-
Bull Pull Hitch
-
Spinner Speed Sensor with Display
