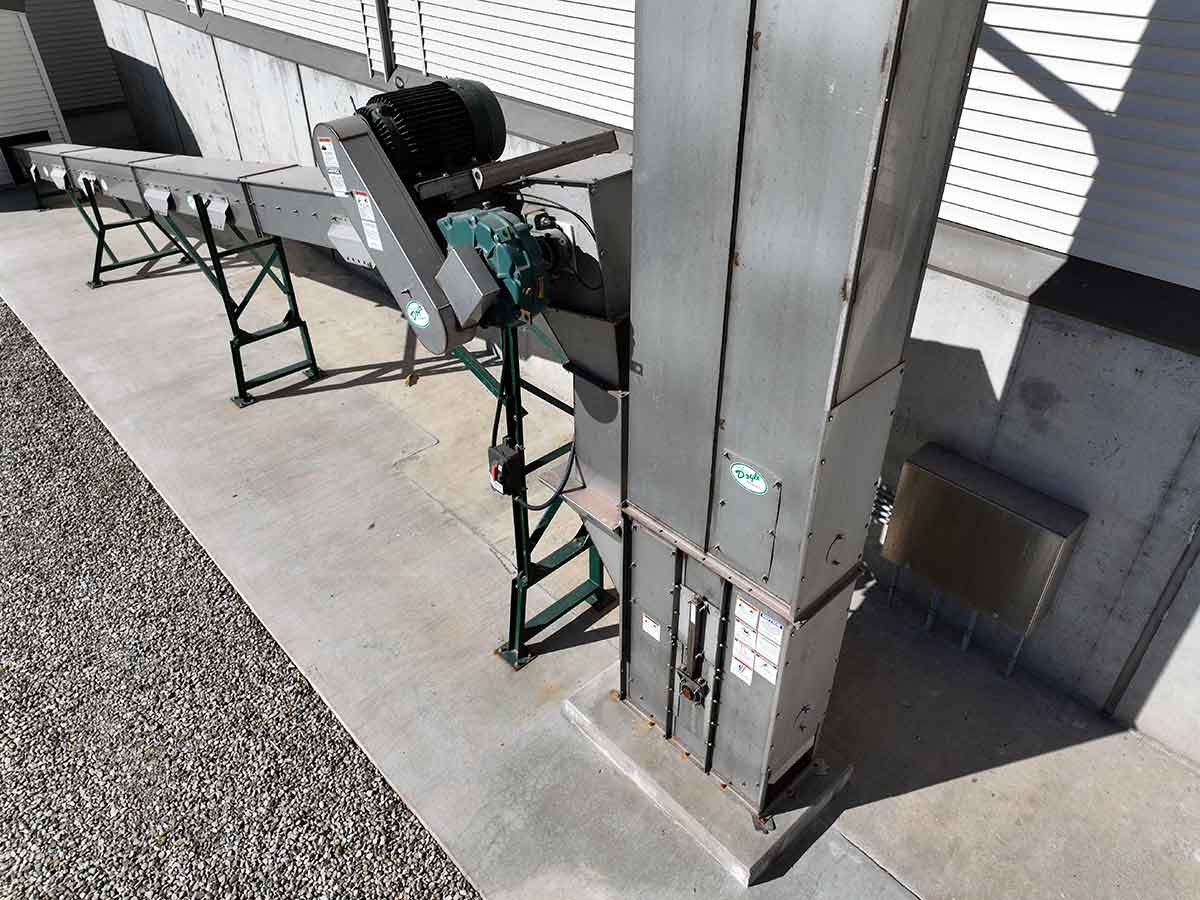

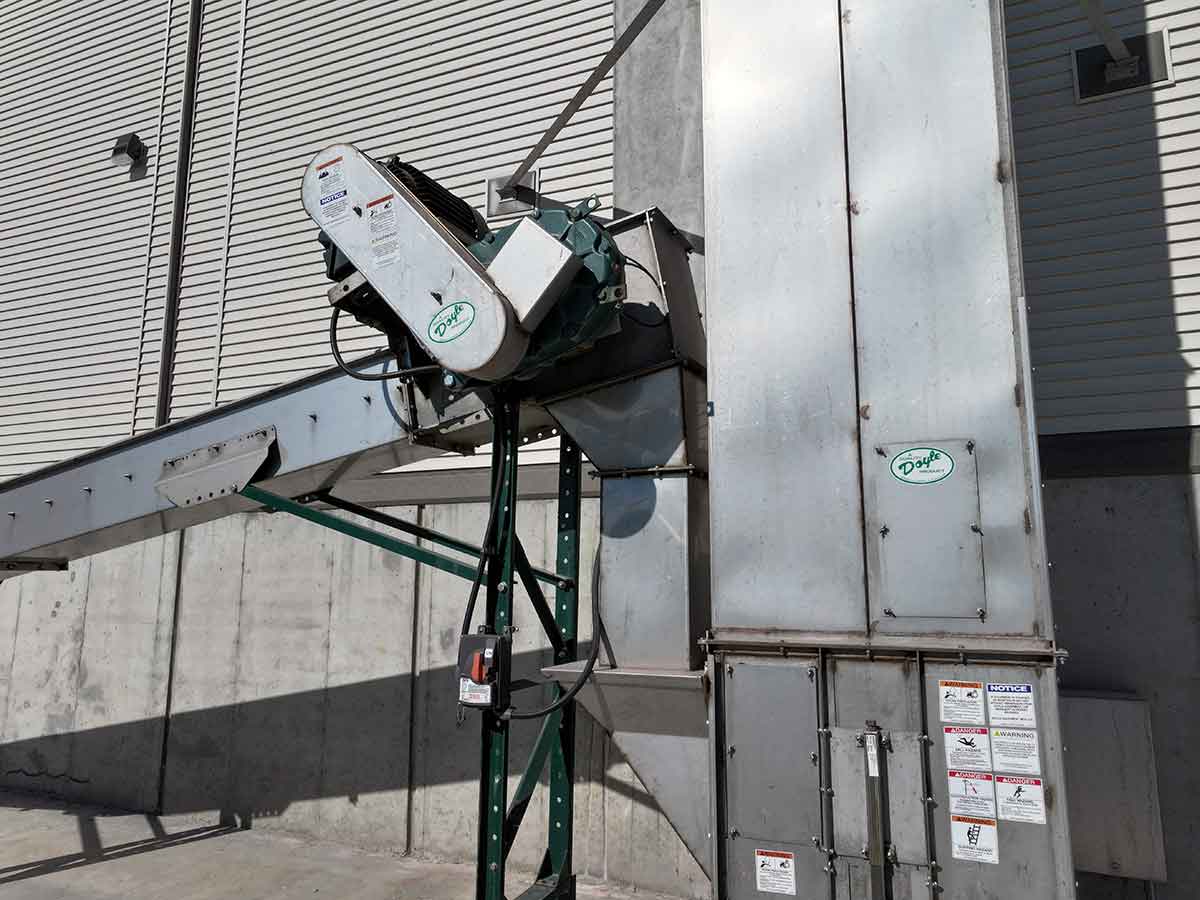

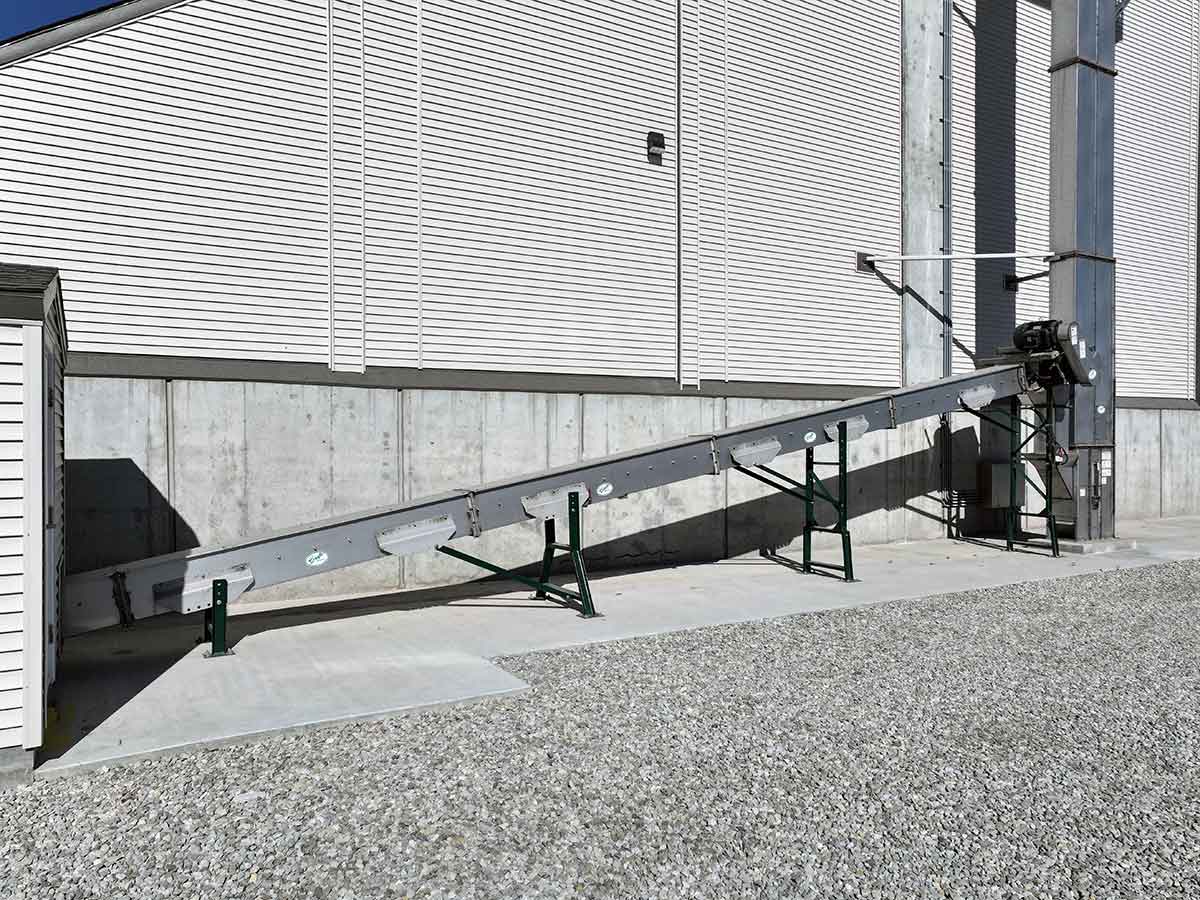

Drag Paddle Conveyor
Drag Conveyor Models
The Doyle Model 1212 and 1616 Flight-Star Drag Conveyors feature #304 stainless steel shells, single strand steel open barrel pintle chains, and stainless steel motor mounts with TEFC 3-phase motors.
Doyle Model 1212 Flight-Star Drag Conveyor 120 T.P.H.
Features
Standard
- 12” deep X 12” wide #304 stainless steel shell with stainless steel middle pan
- AL88 Single strand steel open barrel pintle chain
- 5/8” thick UHMW paddles on every 3rd link
- Easy outside the hopper adjustments for regulating flow of material
- Shaft mount reducer
- Stainless steel motor mounts with TEFC 3-Phase motor, belts, sheaves and bushings and totally enclosed safety guards
- Stainless steel receiving hopper with screen
Doyle Model 1616 Flight-Star Drag Conveyor 200 T.P.H.
Features
Standard
- 16″ deep X 16” wide #304 stainless steel shell with stainless steel middle pan
- D308 Single strand steel open barrel pintle chain
- 5/8″ thick UHMW paddles on every 4th link
- Easy outside the hopper adjustments for regulating flow of material
- Shaft mount reducer
- Stainless steel motor mounts with TEFC 3-Phase motor, belts, sheaves and bushings and totally enclosed safety guards
- Stainless steel receiving hopper with screen

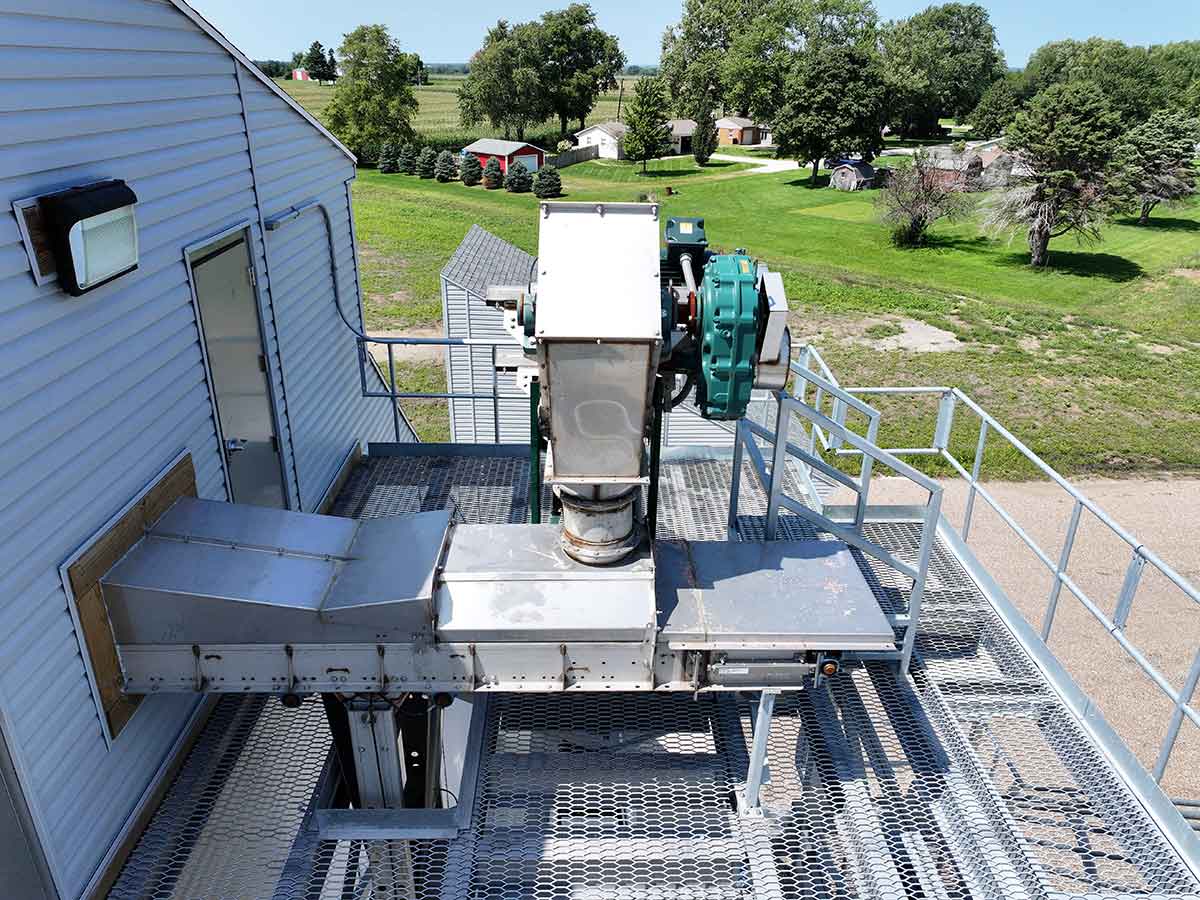

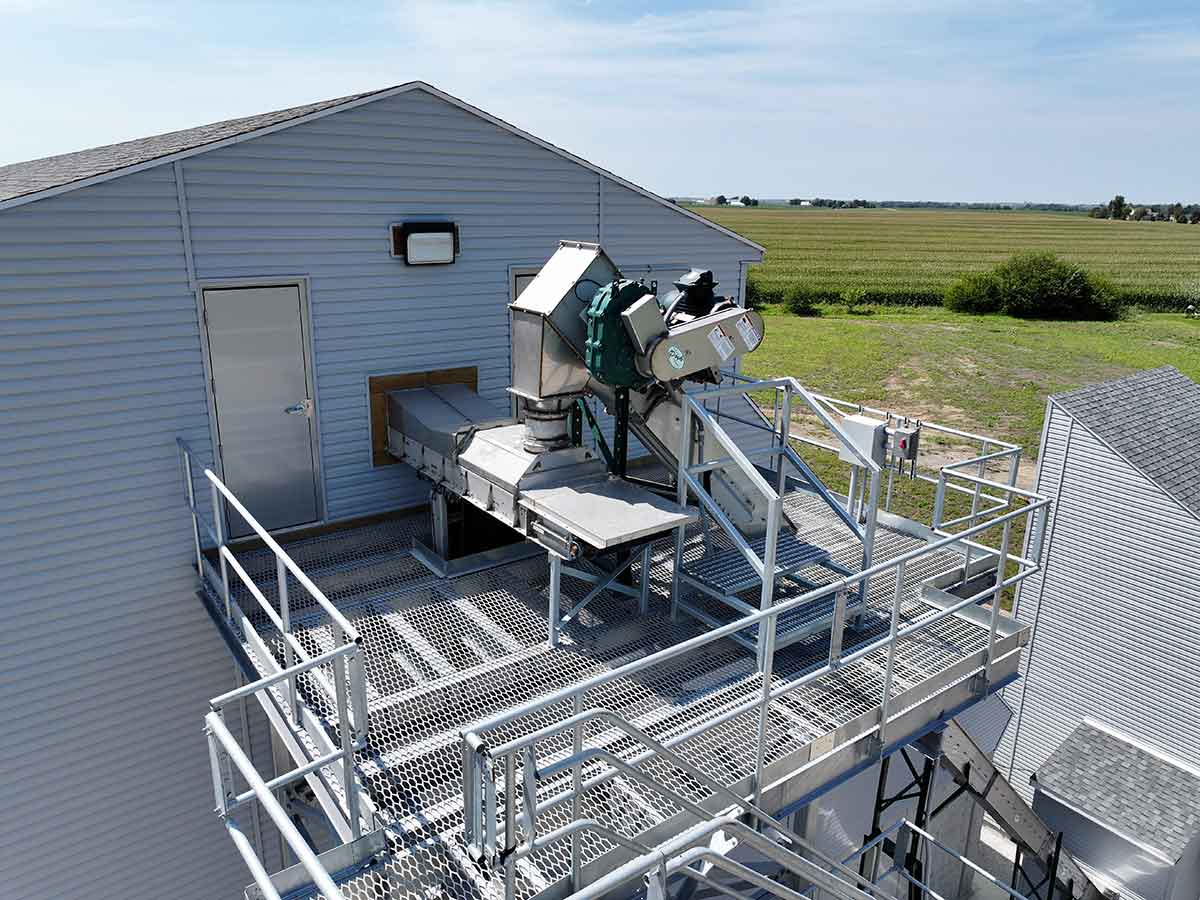

Doyle Fbl 1212 Overhead Drag Conveyor
Features
Standard
- 12″ deep X 12″ wide#304 stainless steel shell
- AL88 Single strand steel open barrel pintle chain
- 5/8″ thick UHMW paddles on every 4th link
- UHMW chain return rollers
- Stainless steel inlet hopper and stainless-steel top covers
- Shaft mount reducer
- Stainless steel motor mounts with TEFC 3-Phase motor, belts, sheaves and bushings and totally enclosed safety guards
- 42” Long discharge gates
Doyle Fbl 1214 Overhead Drag Conveyor
Features
Standard
- 14″ deep X 12″ wide#304 stainless steel shell
- D308 Single strand steel open barrel pintle chain
- 5/8″ thick UHMW paddles on every 4th link
- UHMW chain return rollers
- Stainless steel inlet hopper and stainless steel top covers
- Shaft mount reducer
- Stainless steel motor mounts with TEFC 3-Phase motor, belts, sheaves and bushings and totally enclosed safety guards
- 42” Long discharge gates
