Retail Bulk Dry Fertilizer Facility
Featuring Doyle Declining Weight and Fat Boy Vertical Blending Systems
High-Volume Performance
This retail dry fertilizer building was engineered to deliver efficient, high-volume performance with the flexibility to meet current blending needs and the adaptability to expand as operations grow. Featuring 6,500 tons of dry fertilizer storage, the system supports an annual throughput of approximately 13,500 tons.
Precise, Repeatable Blends
Blending is managed through a combination of Doyle’s Declining Weight and a 10-ton Fat Boy Vertical Blender used as a secondary blending system. The Declining Weight setup includes six 12-ton hoppers and two 2-ton micro-hoppers for micronutrients, enabling precise, repeatable blends involving five or six materials. The system also accommodates chemical impregnation with one additive, allowing for enhanced product customization.
Speed and Simplicity
Operational efficiency is a key advantage of this installation. The system can be fully controlled via iPad from the loader by a single operator, or managed collaboratively between one operator in the office and one at the loader. Designed for speed and simplicity, the facility can unload and load five to six trucks per hour, making it an ideal setup for retail operations seeking both performance and ease of control.
Facility Specifications
| Facility Size | 23,000 Square Foot |
| Blending System | Declining Weight & Fat Boy Vertical Blending Systems |
| Blender | 10 Ton Fat Boy Vertical Blender |
| Capacity | 6,500 tons of dry fertilizer storage |
| Annual Throughput | Approximately 13,500 tons |
| Key Takeaway | Operation efficiency, speed and simplicity |
Project Gallery

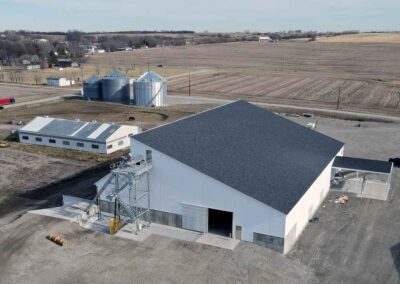

23,000 Square Foot Bulk Dry Fertilizer Building

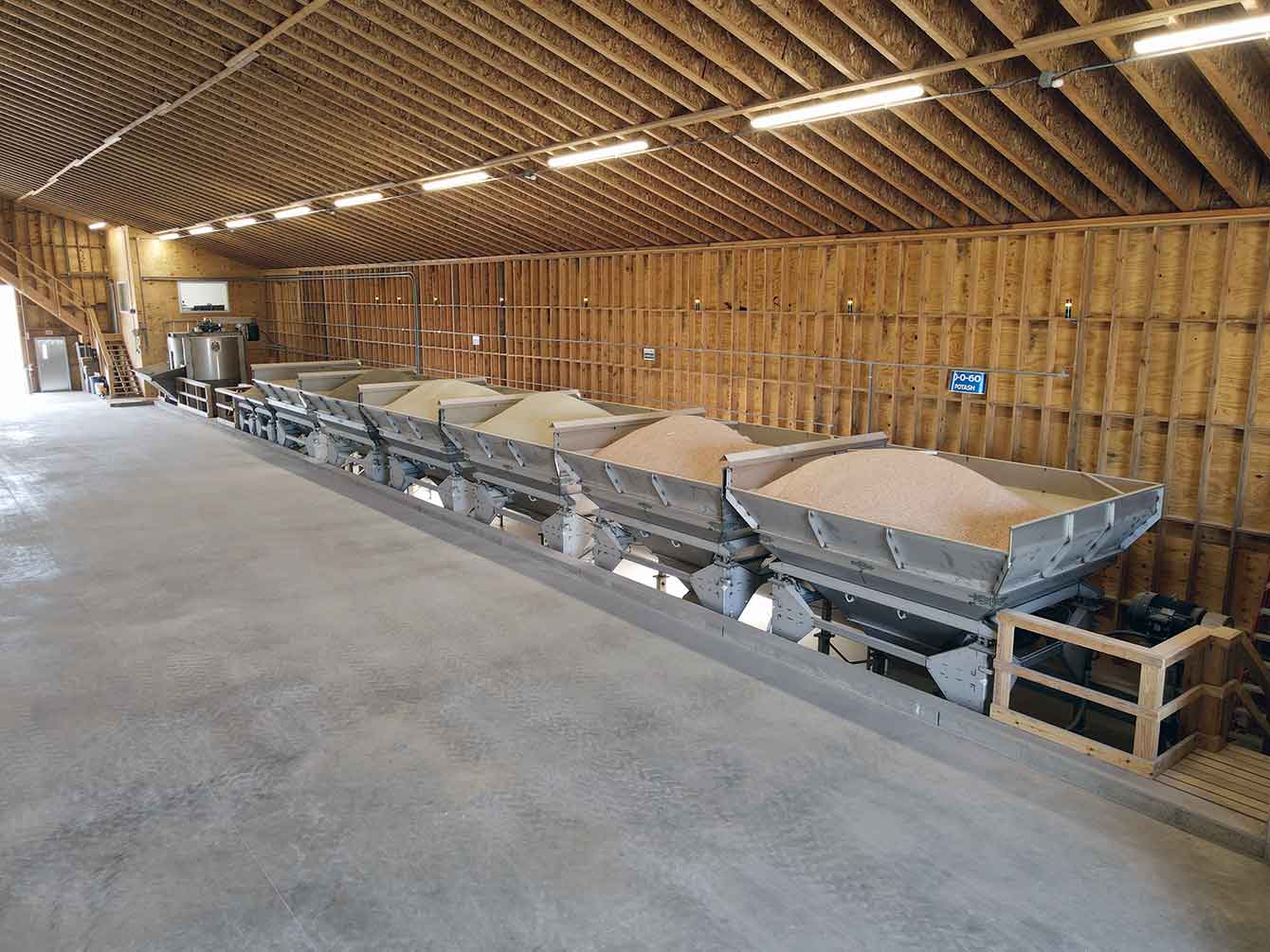

Declining Weight dry fertilizer blend system with six 12-Ton hoppers

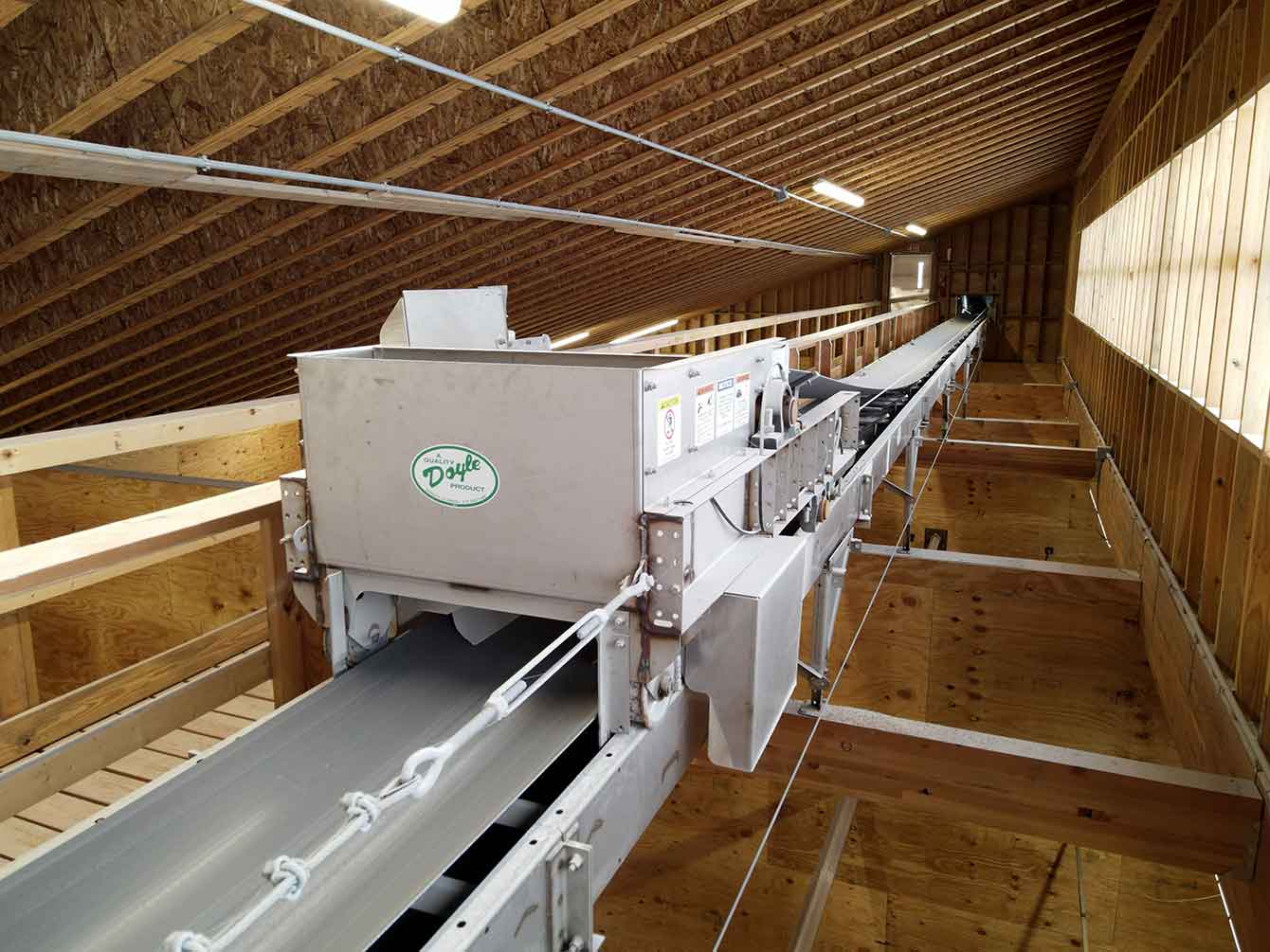

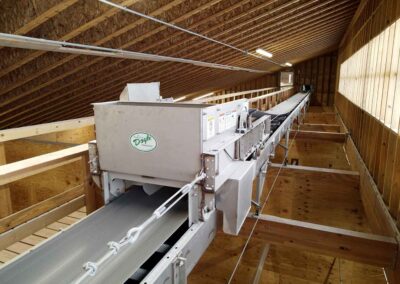

Doyle Three Way Tripper

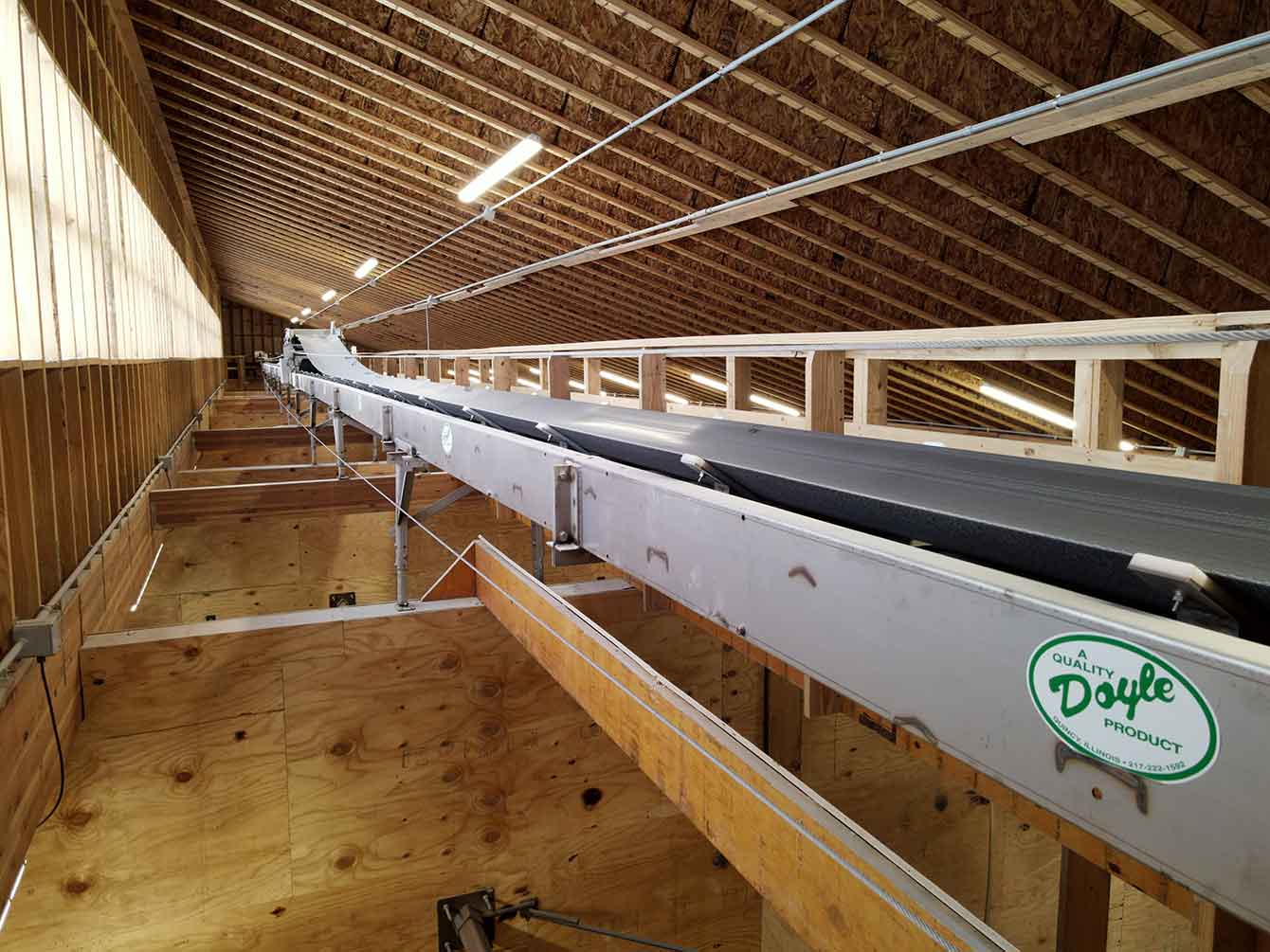

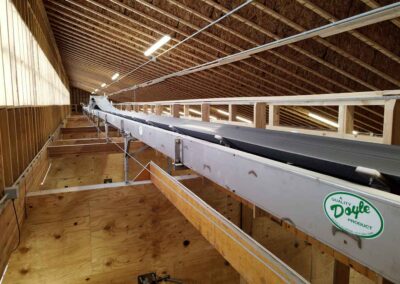

Doyle Tri-Slide Belt Conveyor

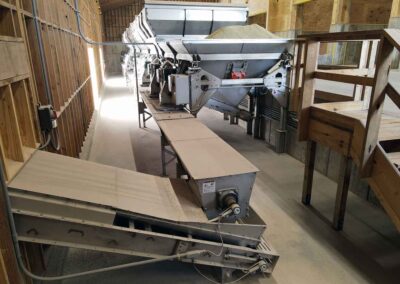

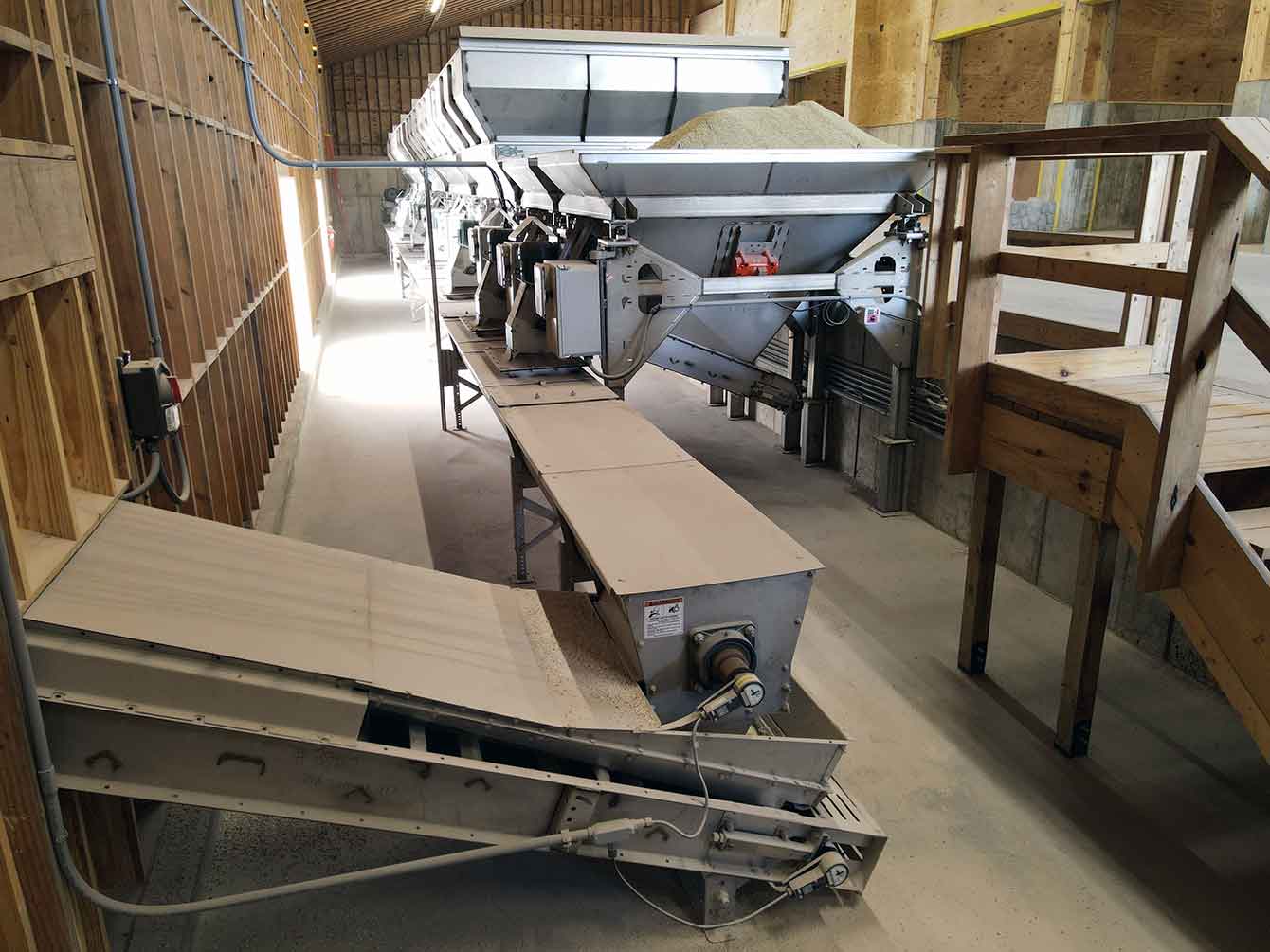

U-Trough Blend Auger feeding the Loadout Conveyor

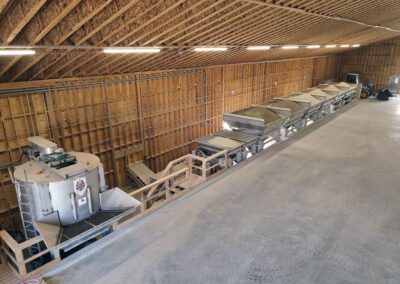

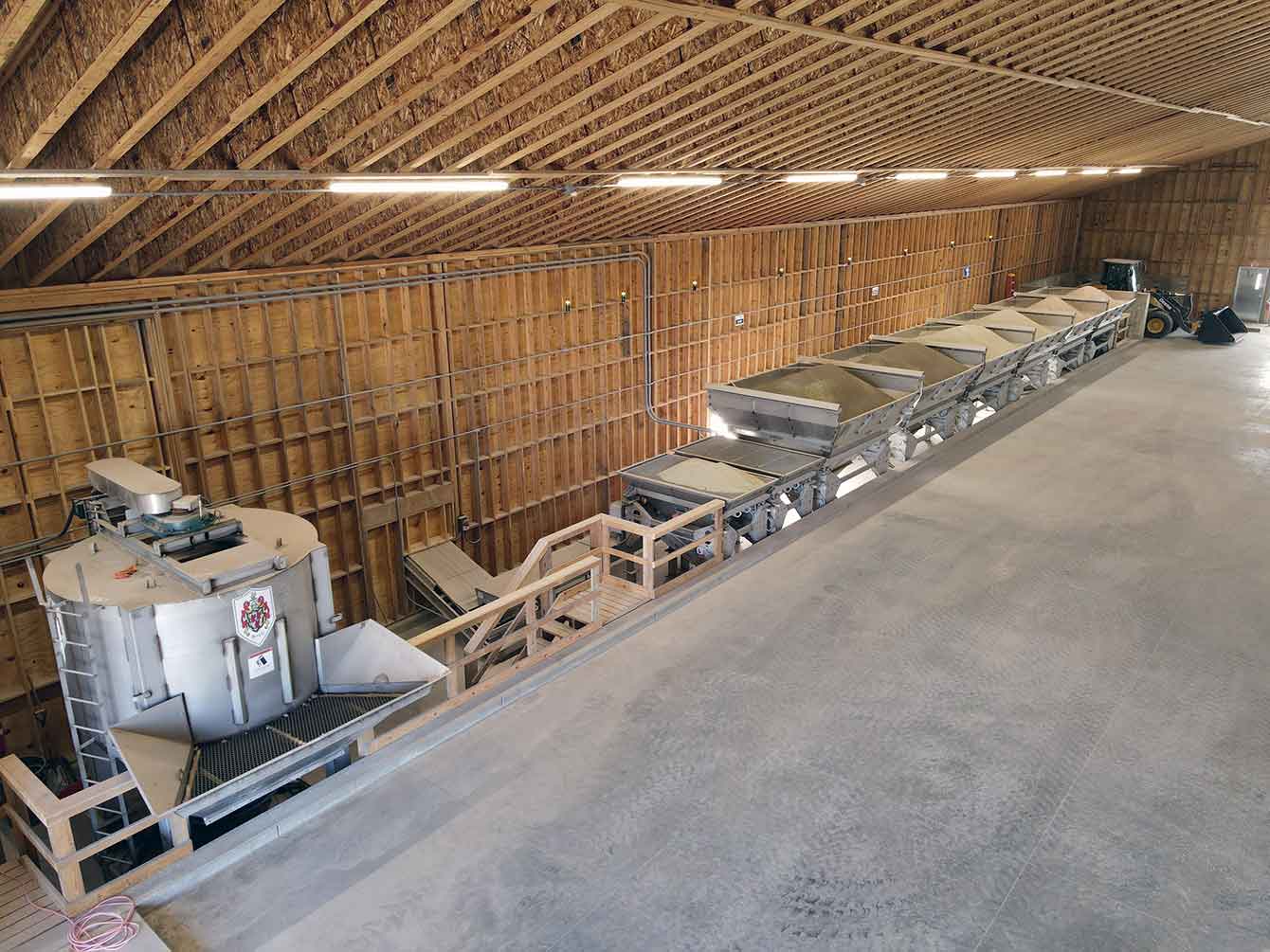

Declining Weight Automated Blend System and 10 Ton Fat Boy Vertical Blender as a secondary blender

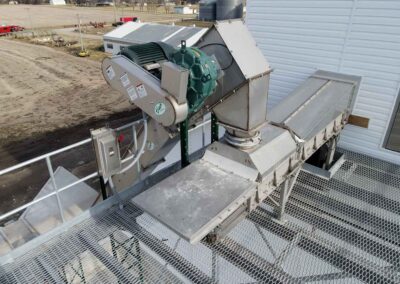

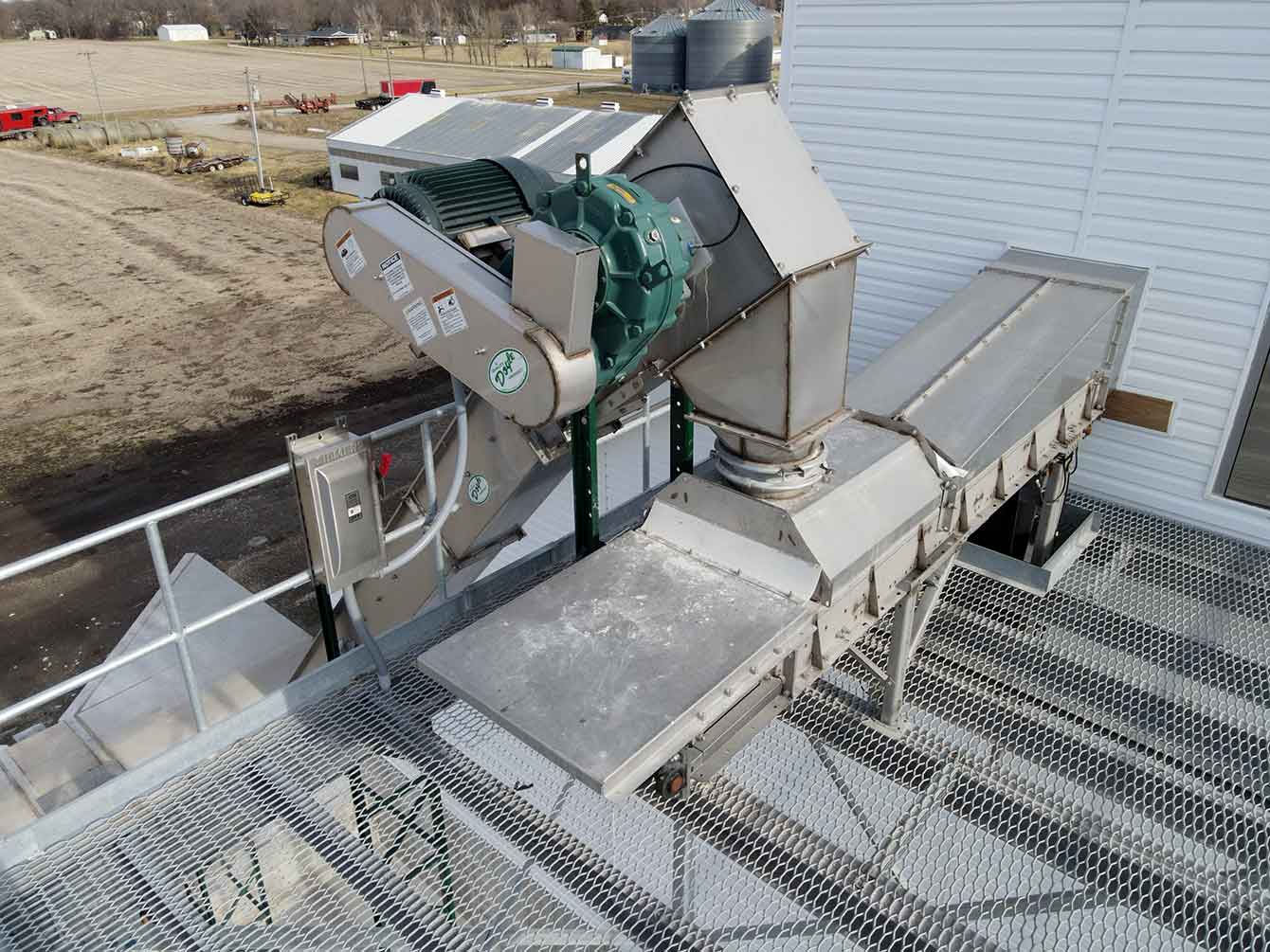

Drag Conveyor to Overhead Tri-Slide Belt Conveyor Connection

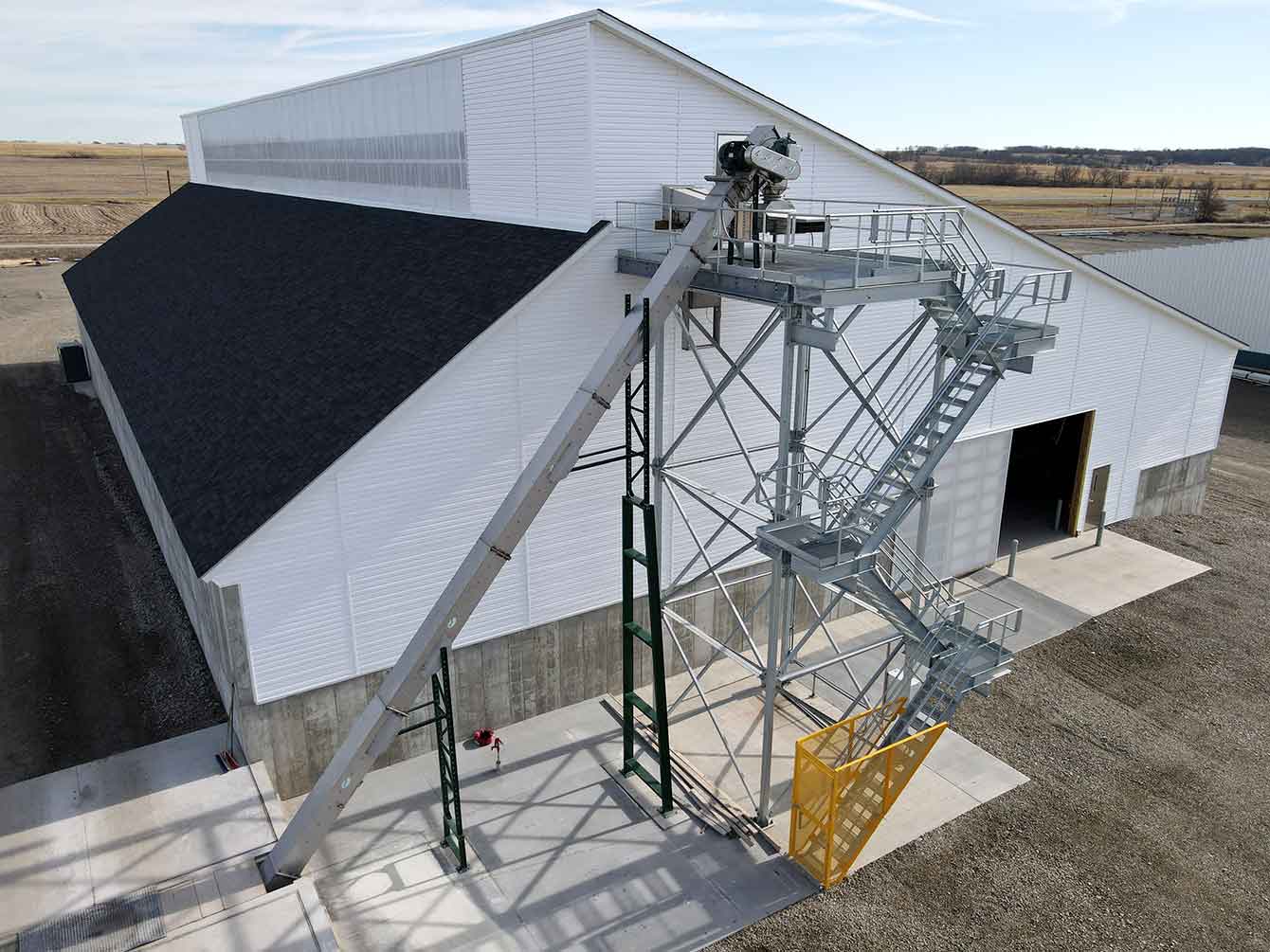

Incline Drag Conveyor Receiving System

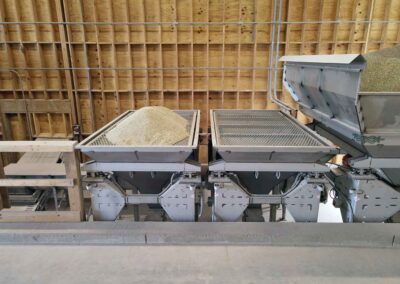

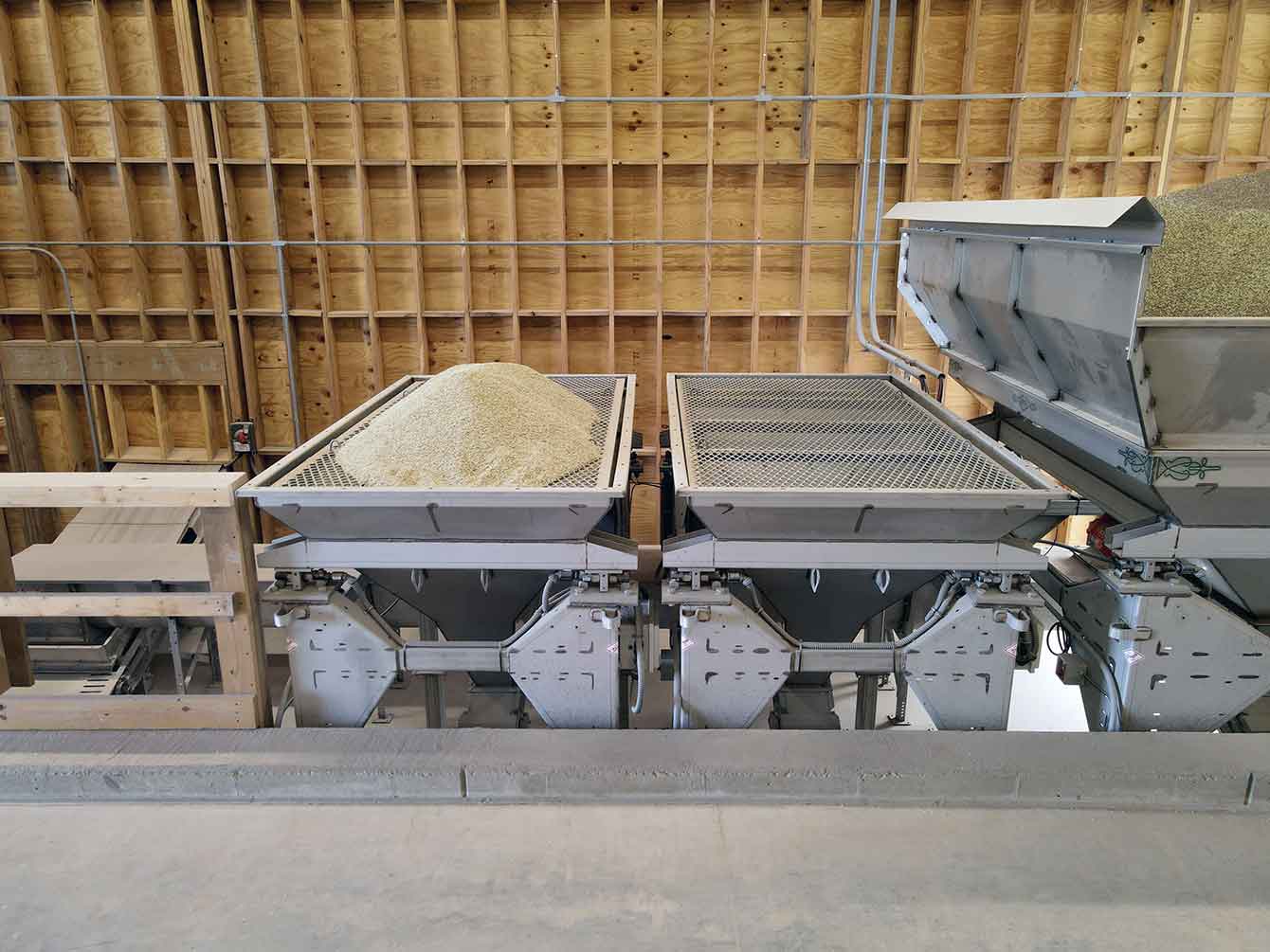

Two Doyle 2-Ton Micro-Hoppers

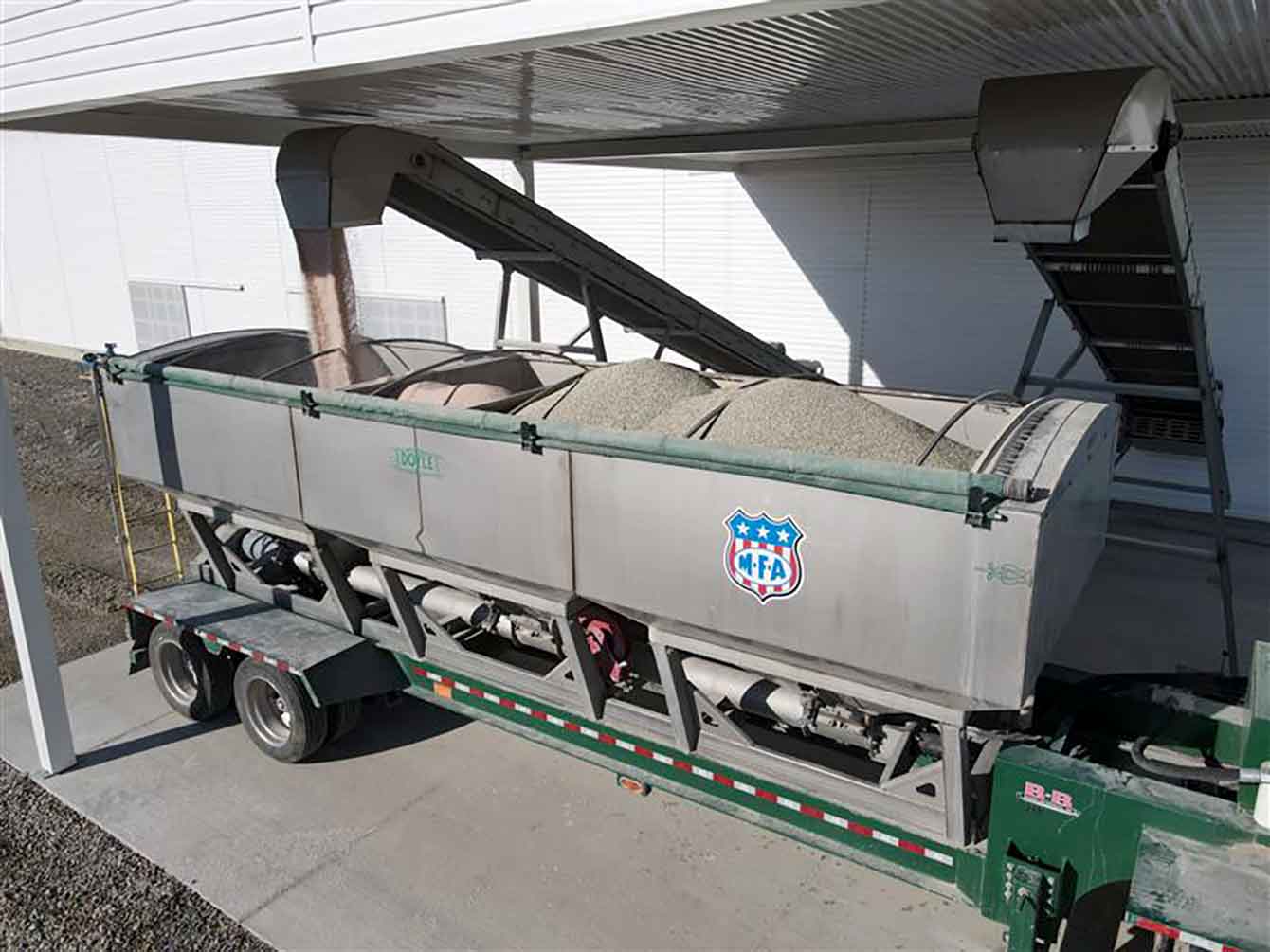

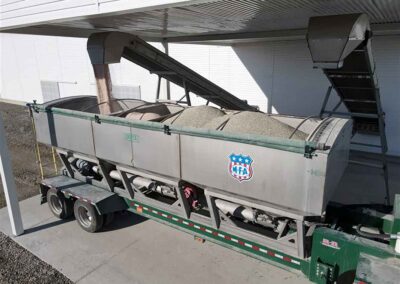

Dual Loadout Lanes unloading dry fertilizer into a 24FT Side Unload Doyle Tender Trailer
