High-Volume Retail Dry Fertilizer Facility
Featuring Doyle Dual Rotary Blender AUTOBATCH™ Blending System
High-Volume Efficiency
This retail fertilizer facility was engineered to support high-volume operations with advanced automation, precision blending, and a modular design built for long-term growth. With 12,500 tons of dry fertilizer storage housed within a 34,000-square-foot facility, the system efficiently manages demanding throughput requirements while maintaining consistent product quality.
Accurate Repeatable Blends
At the core of the operation is a fully automated Doyle AUTOBATCH™ blending system featuring nine total weigh hoppers, including seven 16-ton hoppers, one 9-ton quad split hopper, and one 9-ton hopper, paired with dual 13-ton rotary blenders. The Dual Rotary AUTOBATCH™ configuration allows operators to blend one batch while loading another, enabling multiple trucks to be loaded simultaneously. With NTEP-certified hoppers and automation, the system delivers accurate, repeatable blends across all batch sizes and supports impregnation with up to four chemicals, making it well suited for prescription blending programs.
High-Capacity Solution
Inbound material is received through a drag conveyor that feeds a bucket elevator, which unloads onto a tri-slide conveyor with a three-way tripper for efficient material distribution throughout the fertilizer warehouse. Designed for both performance and labor efficiency, the facility supports up to eight trucks per hour while requiring only two operators, delivering a streamlined, high-capacity solution for modern retail fertilizer operations.
Facility Specifications
| Facility Size | 34,000-square-foot |
| Blending System | Dual Rotary Blender AUTOBATCH™ Blending System |
| Blender | 13-ton rotary blender |
| Capacity | 12,500 tons of dry fertilizer storage |
| Key Takeaway | High-capacity streamlined blending accuracy |
Project Gallery

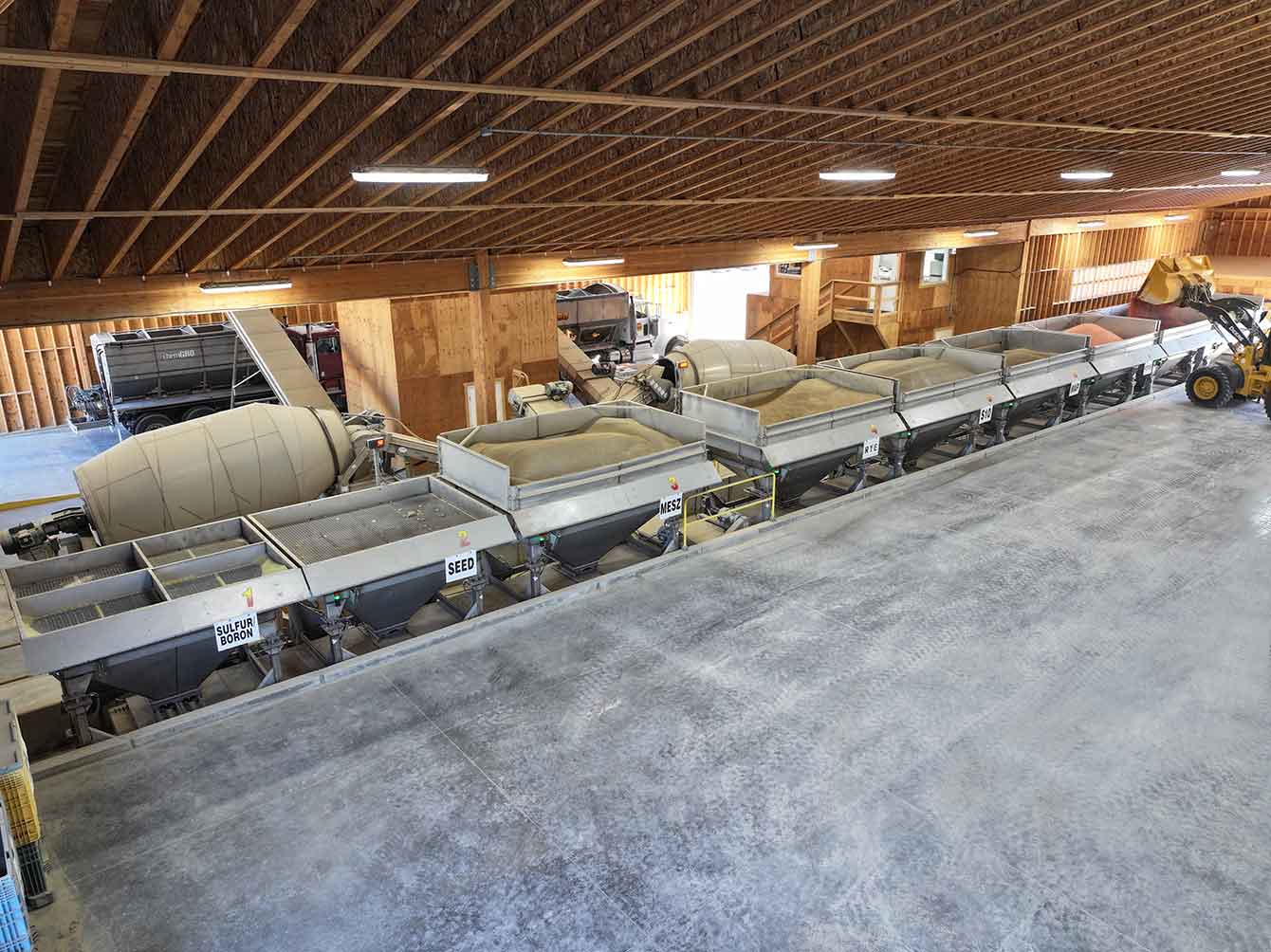

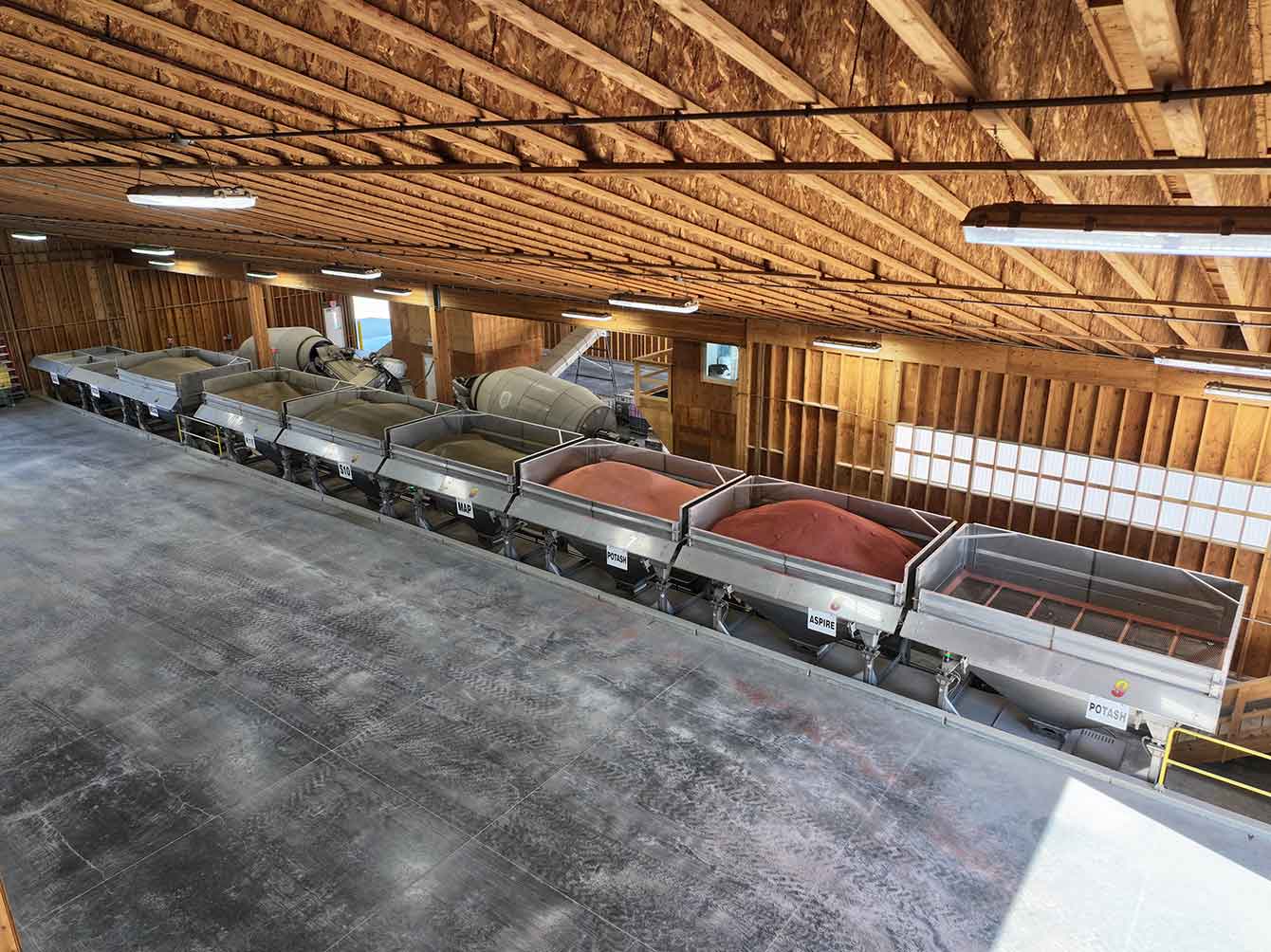

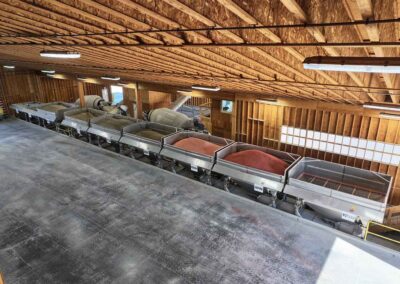

Dual 13-ton Rotary Blender AUTOBATCH blend system loading two dry fertilizer tender trucks at the same time

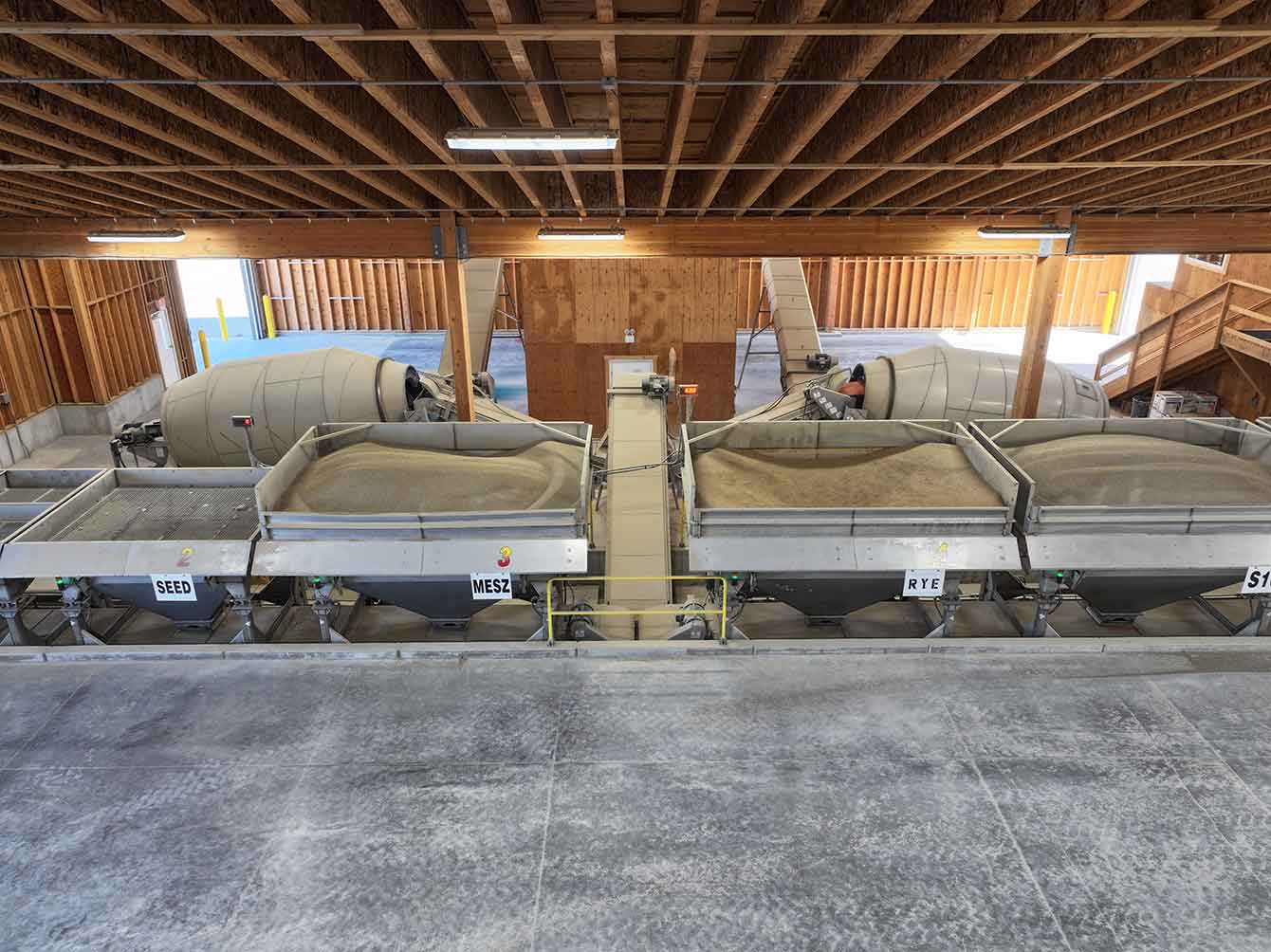

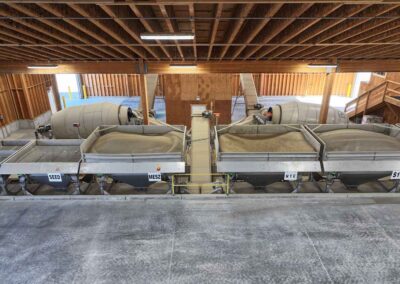

Split hopper configuration allows material from hoppers on both sides of the system to be dispensed into a central transfer conveyor.

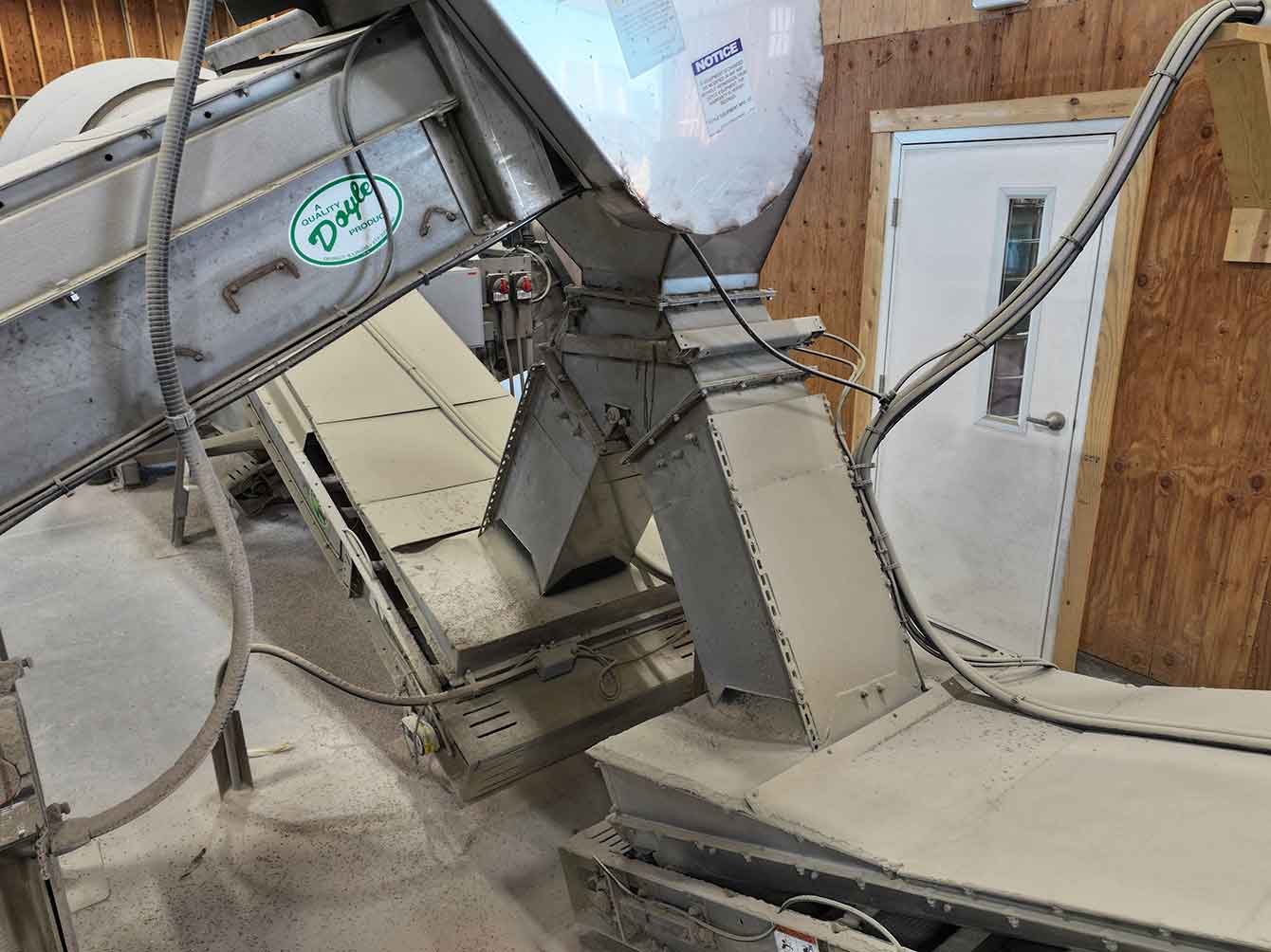

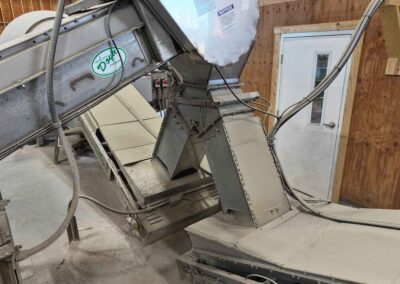

Central transfer conveyor with a Y-valve for directing material to either the left or right blender, or bypassing the blender to unload straight product into either loadout lane

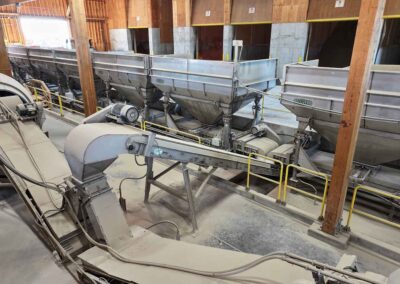

Underbin conveyors feeding into a central transfer conveyor with a Y-valve.

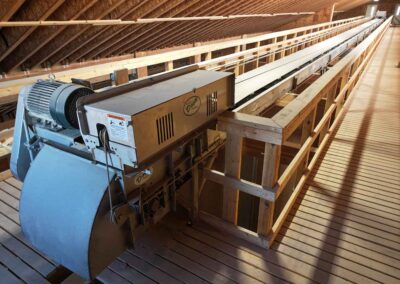

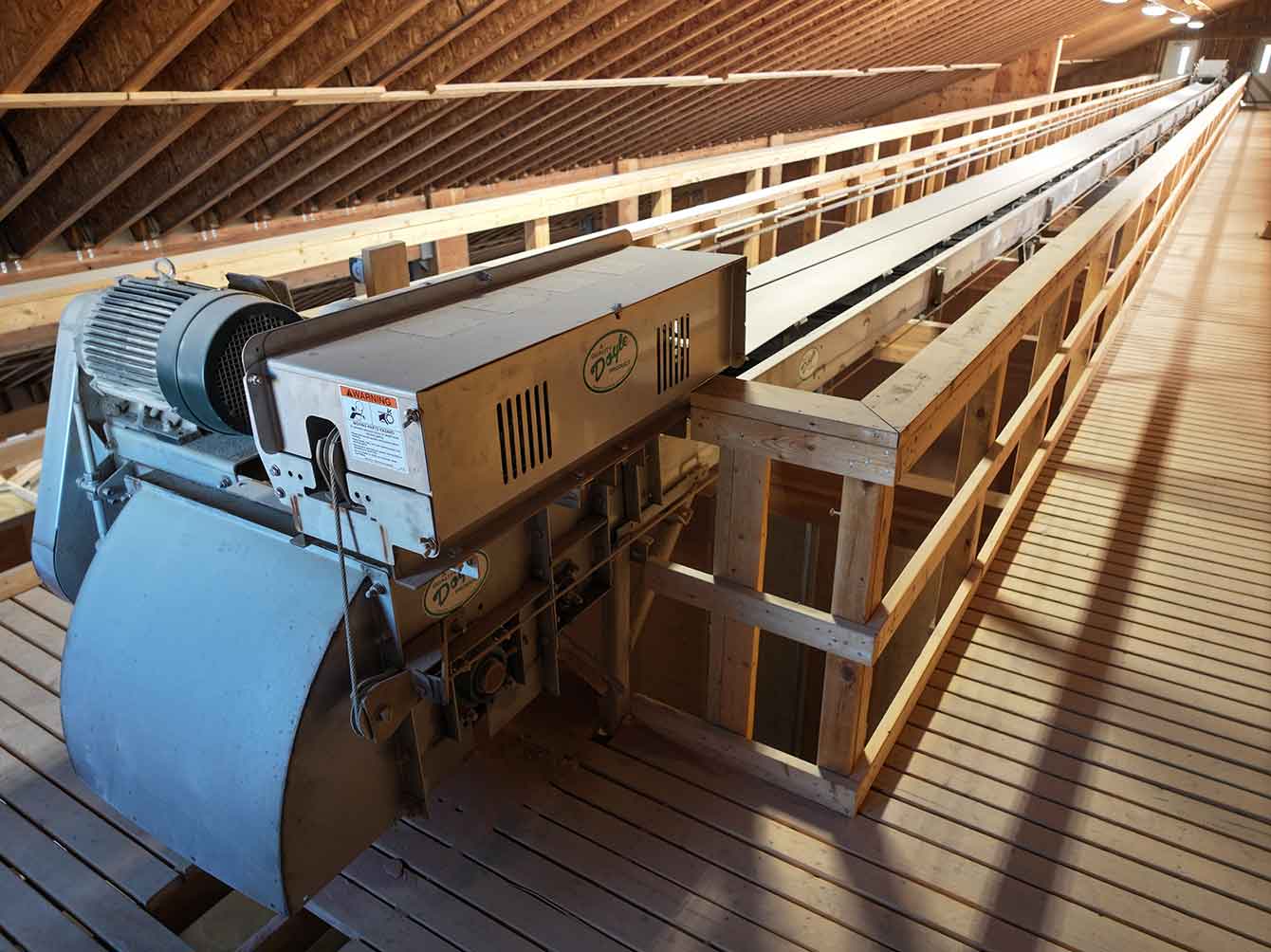

Tail-end of the Tri-Slide overhead dry fertilizer conveyor with Three-Way Tripper

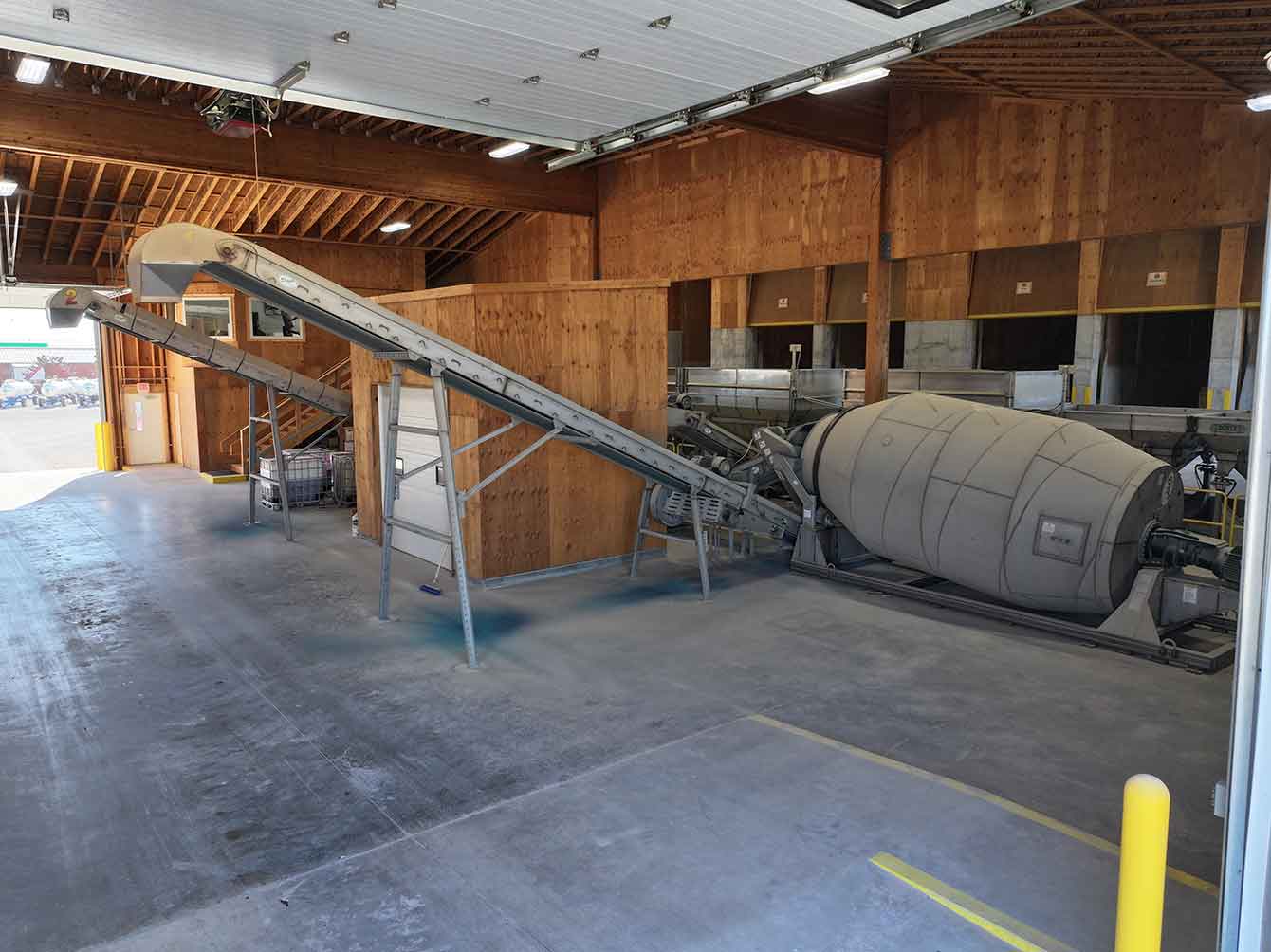

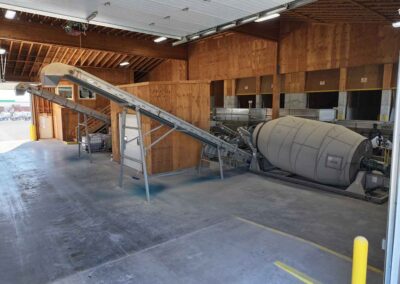

Dual loadout lanes for unloading blended or straight material into multiple trucks or trailers simultaneously.

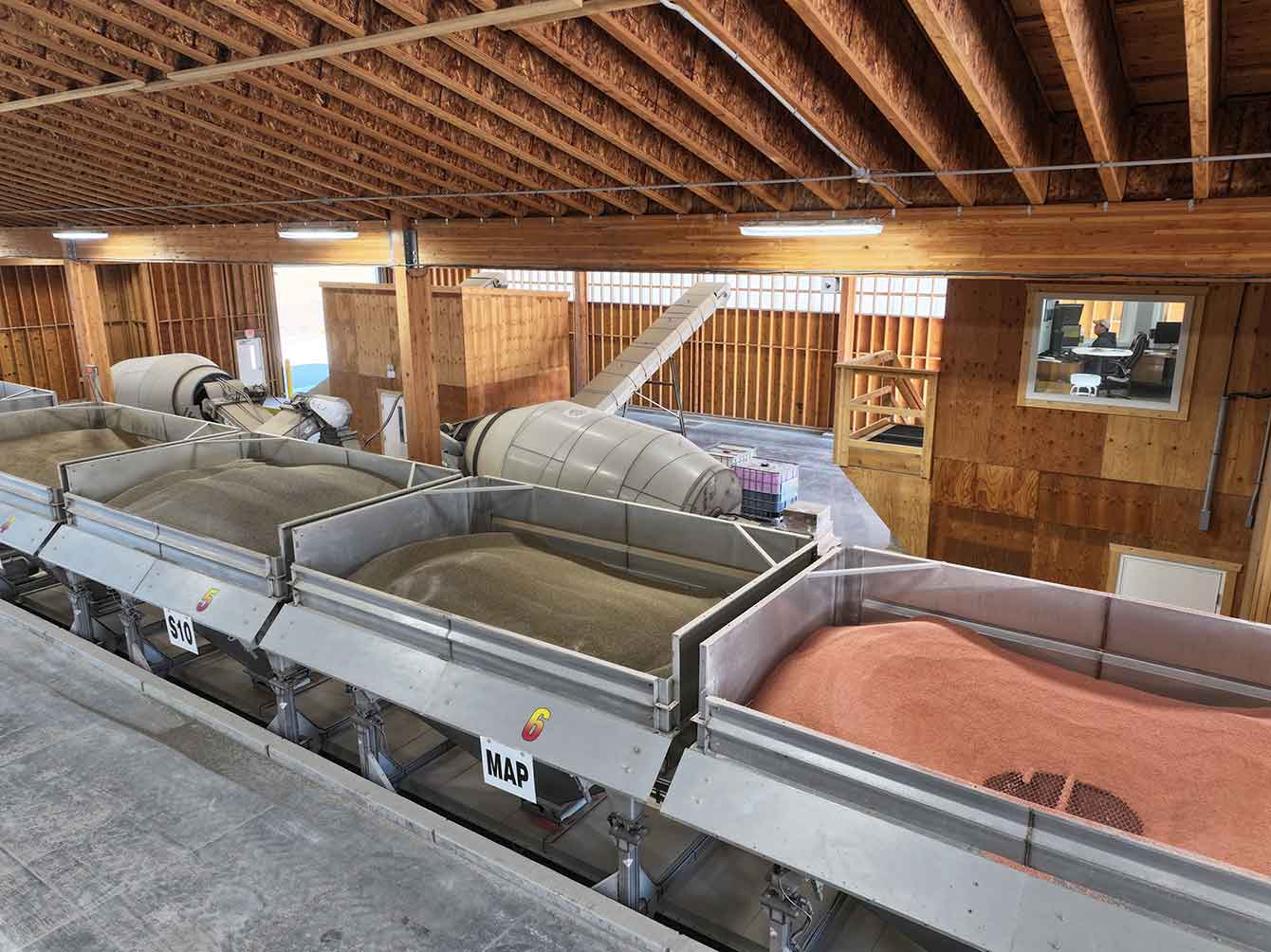

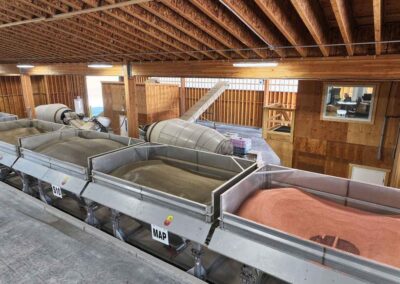

Blend system operator’s office overlooking the loadout lanes and blending system.

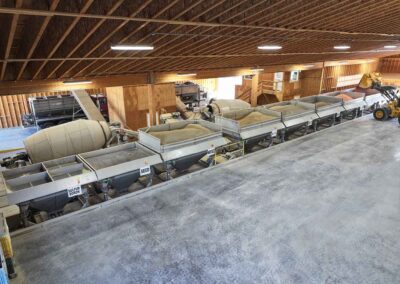

Dual 13-ton Rotary Blender AUTOBATCH blend system loading two dry fertilizer tender trucks at the same time

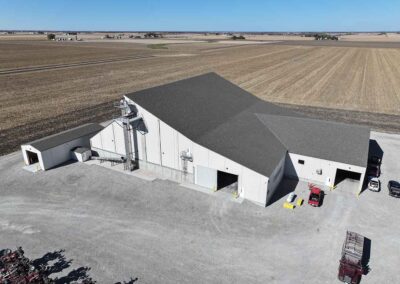

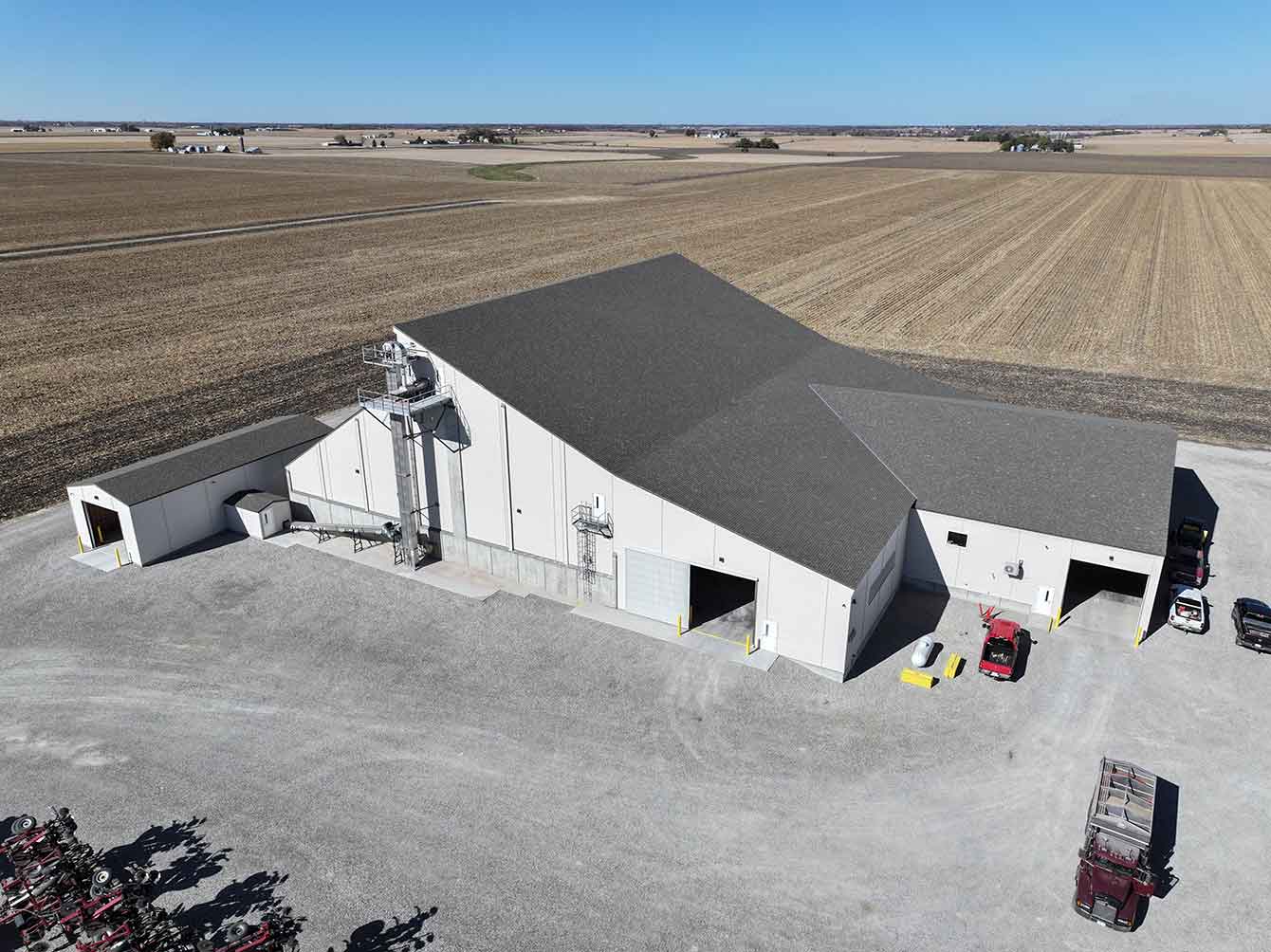

34,000 Square Foot Bulk Dry Fertilizer Blend Facility Building
