High-Capacity Retail Fertilizer Hub
Featuring Doyle Declining Weight and AUTOBATCH™ Blending Systems
High-Capacity Efficiency
This retail fertilizer building was designed to deliver high-capacity, efficient blending and loadout performance with the flexibility to meet current operational needs and the modularity to expand as business grows. The facility features 7,400 tons of dry fertilizer storage, supporting an annual throughput between 25,500 and 30,000 tons.
Diverse Blending Needs
To meet diverse blending needs, the system incorporates a Doyle Declining Weight setup alongside the Doyle AUTOBATCH™ system. The Declining Weight system includes six 12-ton hoppers and two 2-ton micro-hoppers, providing exceptional flexibility and accuracy in multi-material blends. The AUTOBATCH™ system complements this with a double-hopper build-up batching design and a 13-ton rotary blender, enabling seamless transitions between batches of all sizes.
Increased Productivity
The facility’s impregnation system handles four separate chemicals, further expanding its service capabilities. Despite the operation’s scale, only two operators are required to manage the system efficiently, keeping labor needs low while maintaining productivity of six to seven trucks per hour.
Facility Specifications
| Facility Size |
26,600 Square Foot |
| Blending System | Declining Weight & AUTOBATCH™ system |
| Blender | 13-ton rotary blender |
| Capacity | 7,400 tons of dry fertilizer storage |
| Annual Throughput | Between 25,500 and 30,000 tons |
| Key Takeaway | Operation scale with minimum operational management |
Project Gallery

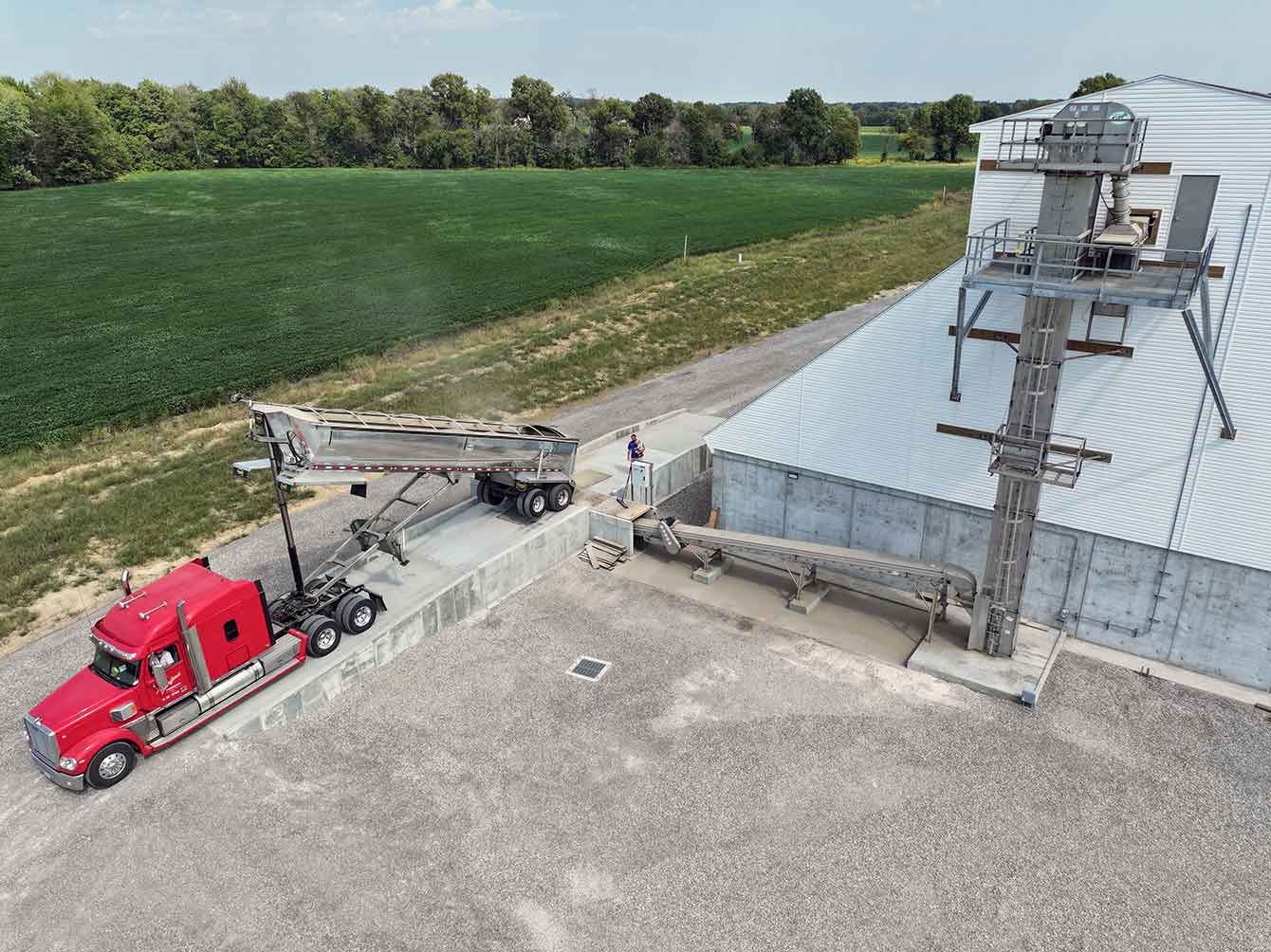

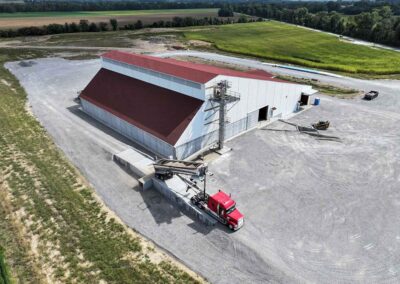

Semitruck Unloading Dry Fertilizer into Receiving Conveyor feeding Bucket Elevator

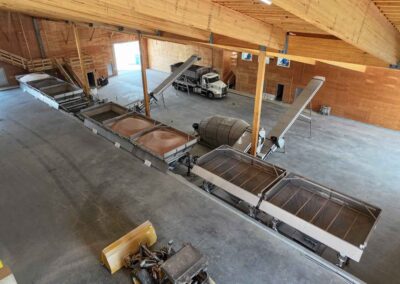

Declining Weight (left) and AUTOBATCH™ (right) Blend Systems
26,600 Square Foot Bulk Dry Fertilizer Blending Facility

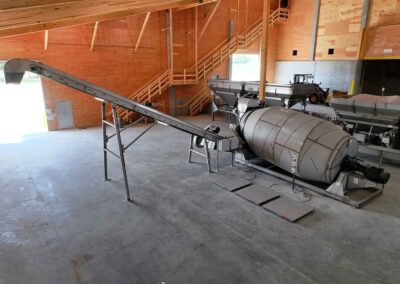

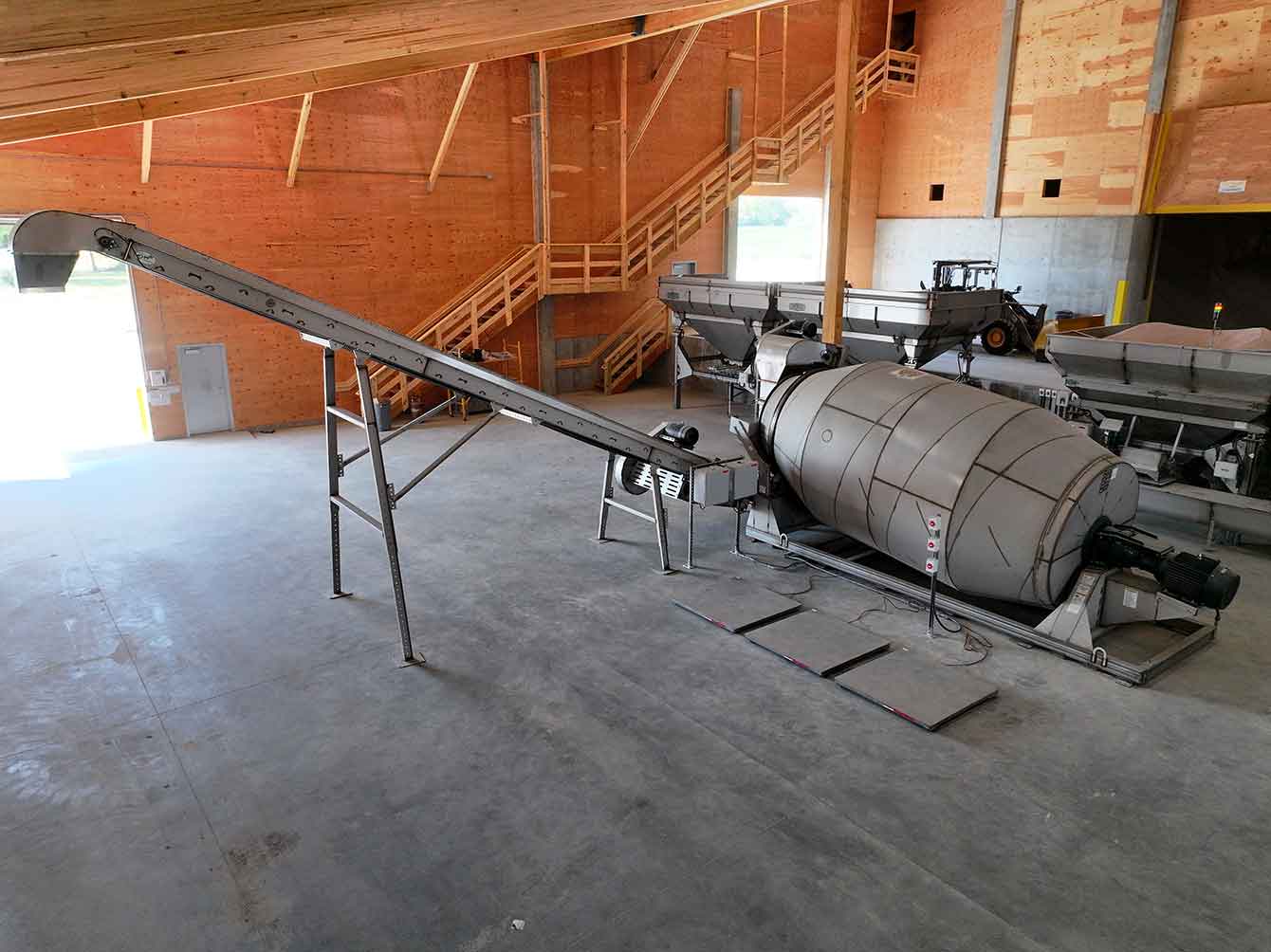

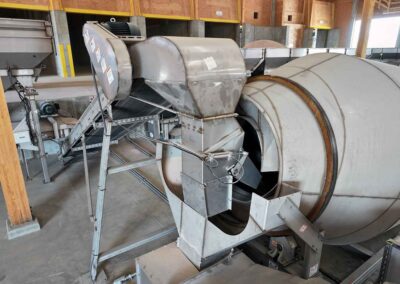

13-Ton Rotary Blender, Loadout Conveyor, and two 13-Ton AUTOBATCH™ Hoppers

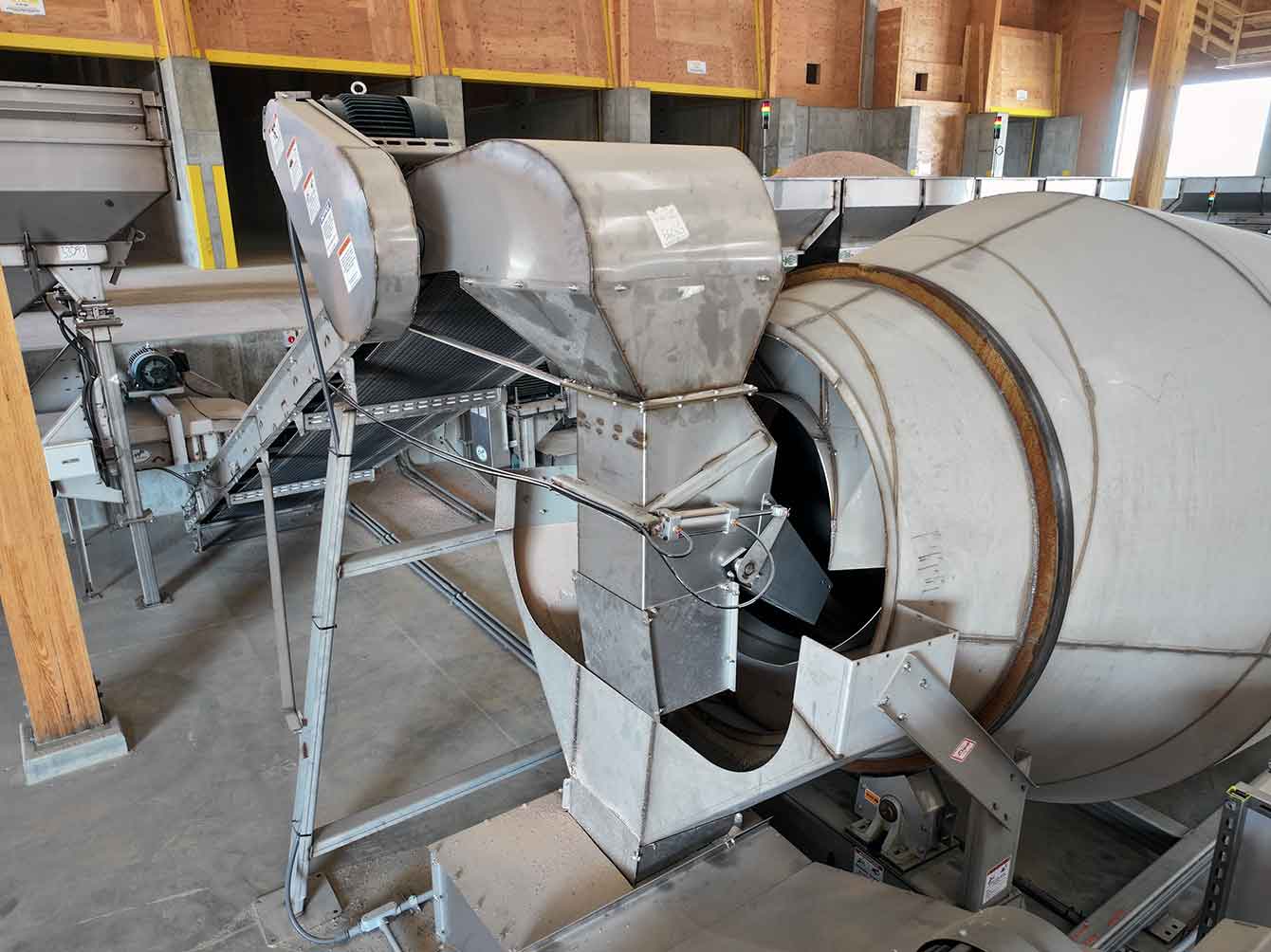

Transfer Conveyor with Y-Valve for either Straight Product Loadout or Batch Blending

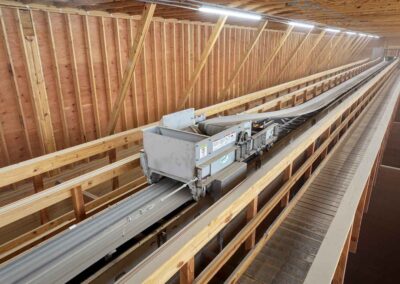

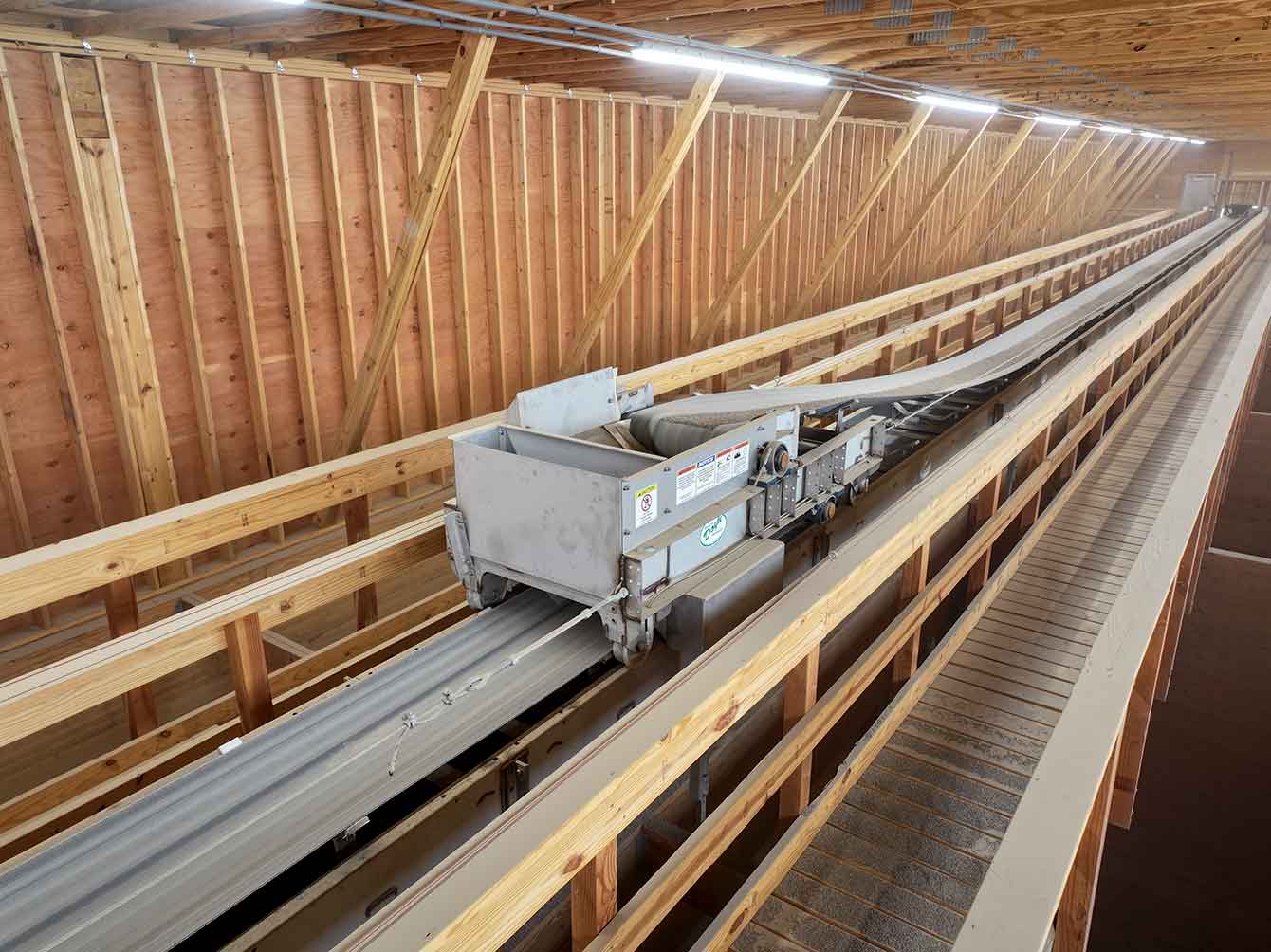

Tri-Slide Conveyor with Three Way Tripper

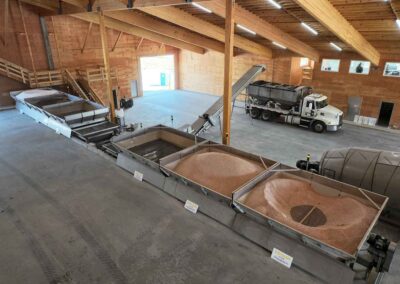

Declining Weight Loadout Conveyor unloading dry fertilizer into a 16FT Doyle Side Unload Truck Tender

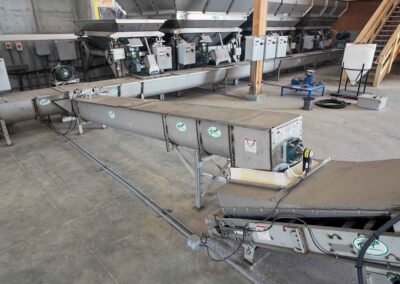

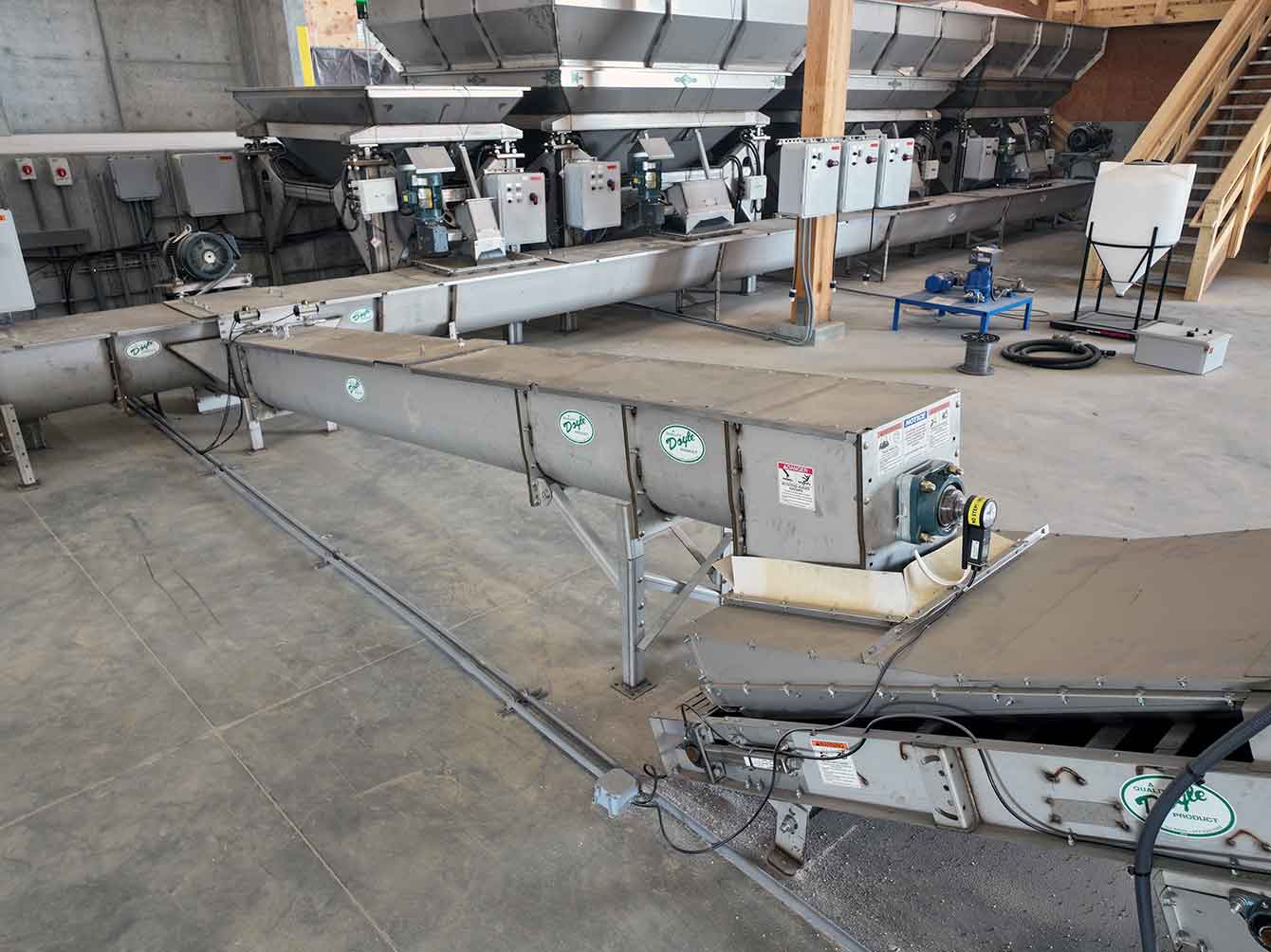

Transfer U-Trough Dry Fertilizer Blend Auger feeding Loadout Conveyor
Declining Weight with six 12-Ton Hoppers and two 2-Ton Micro-Hoppers

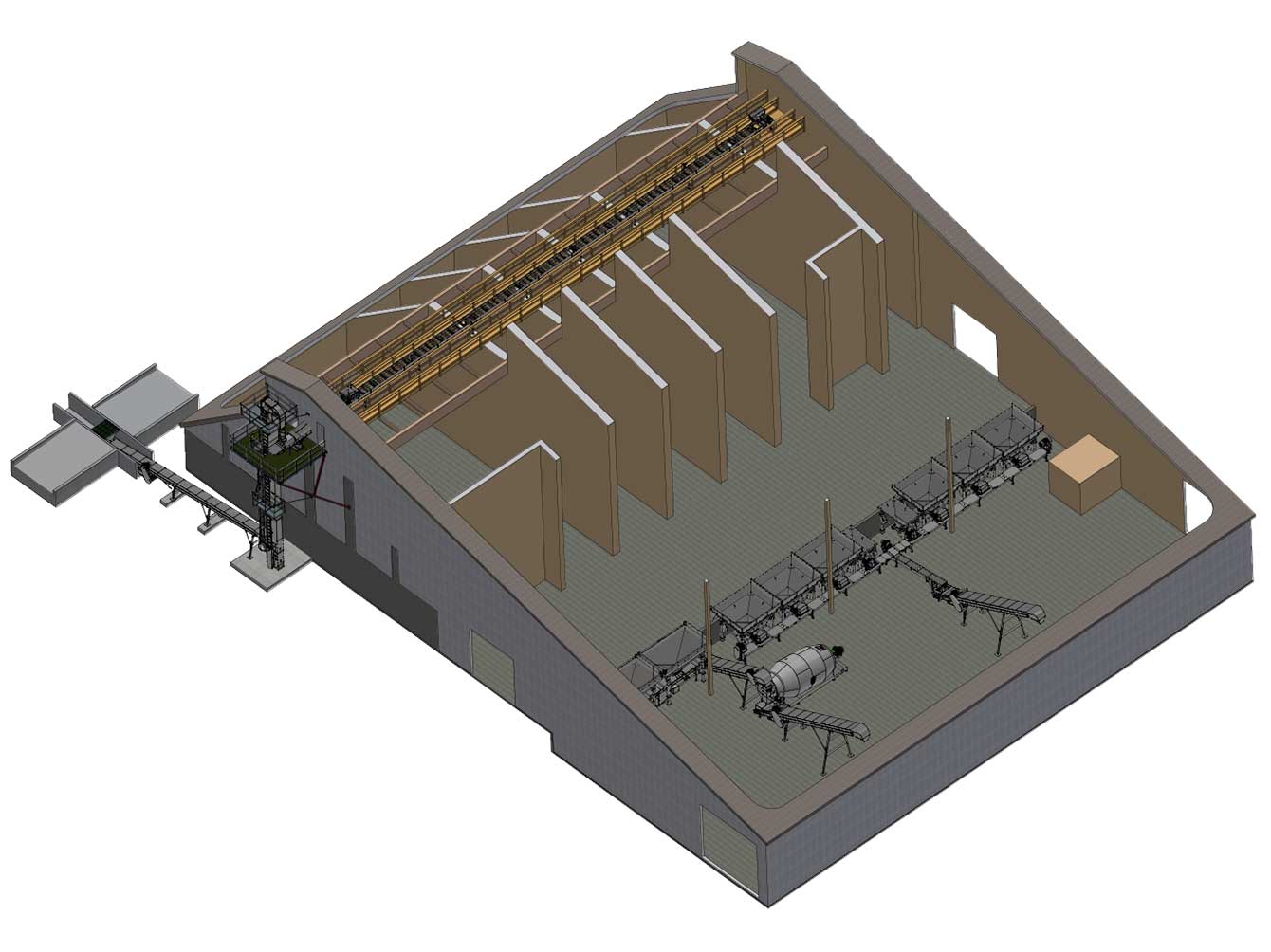

3D Model of Complete Facility, Blending, Conveying, and Receiving
